Battery Holder Plates.

[Chase5175]

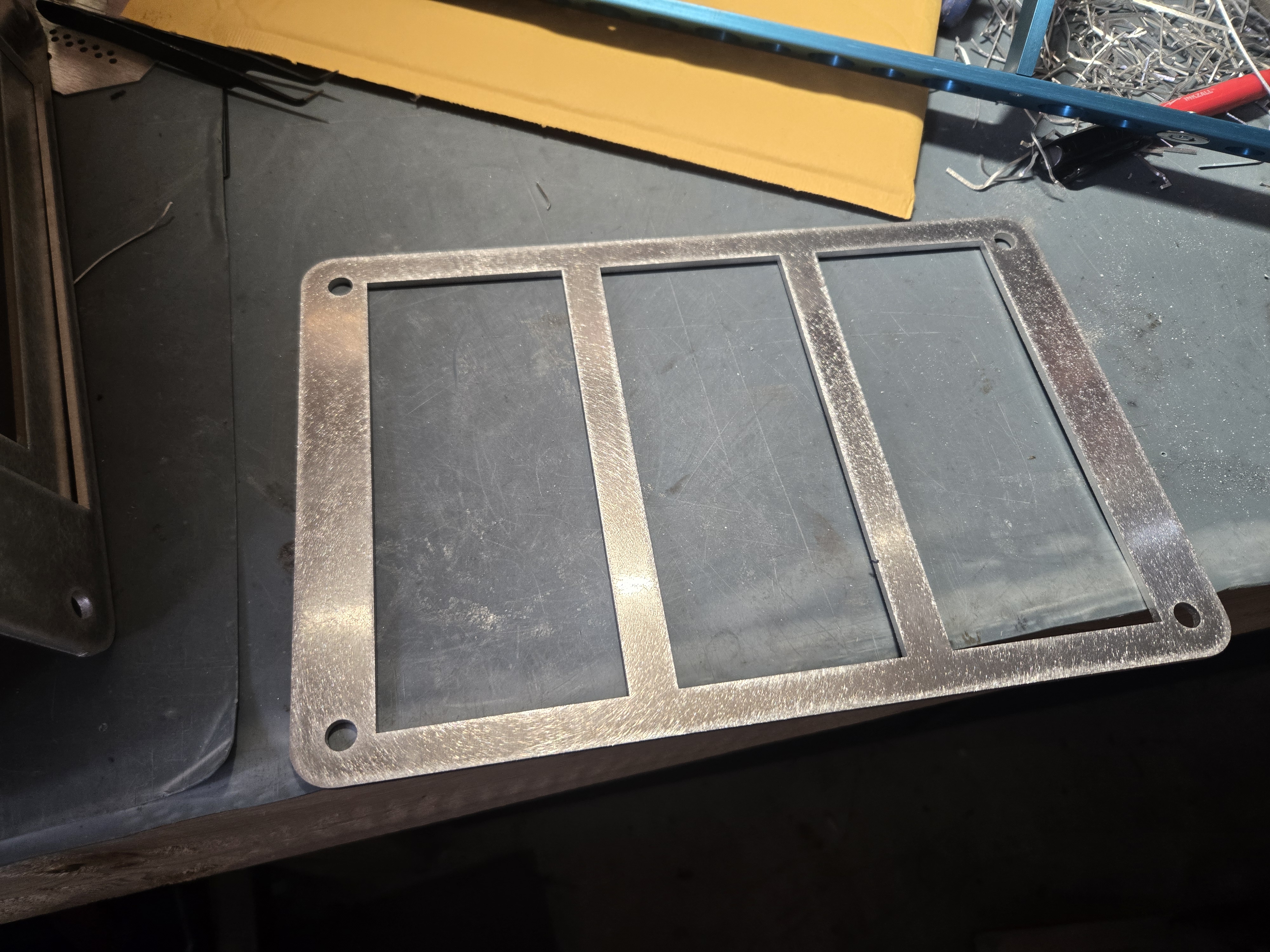

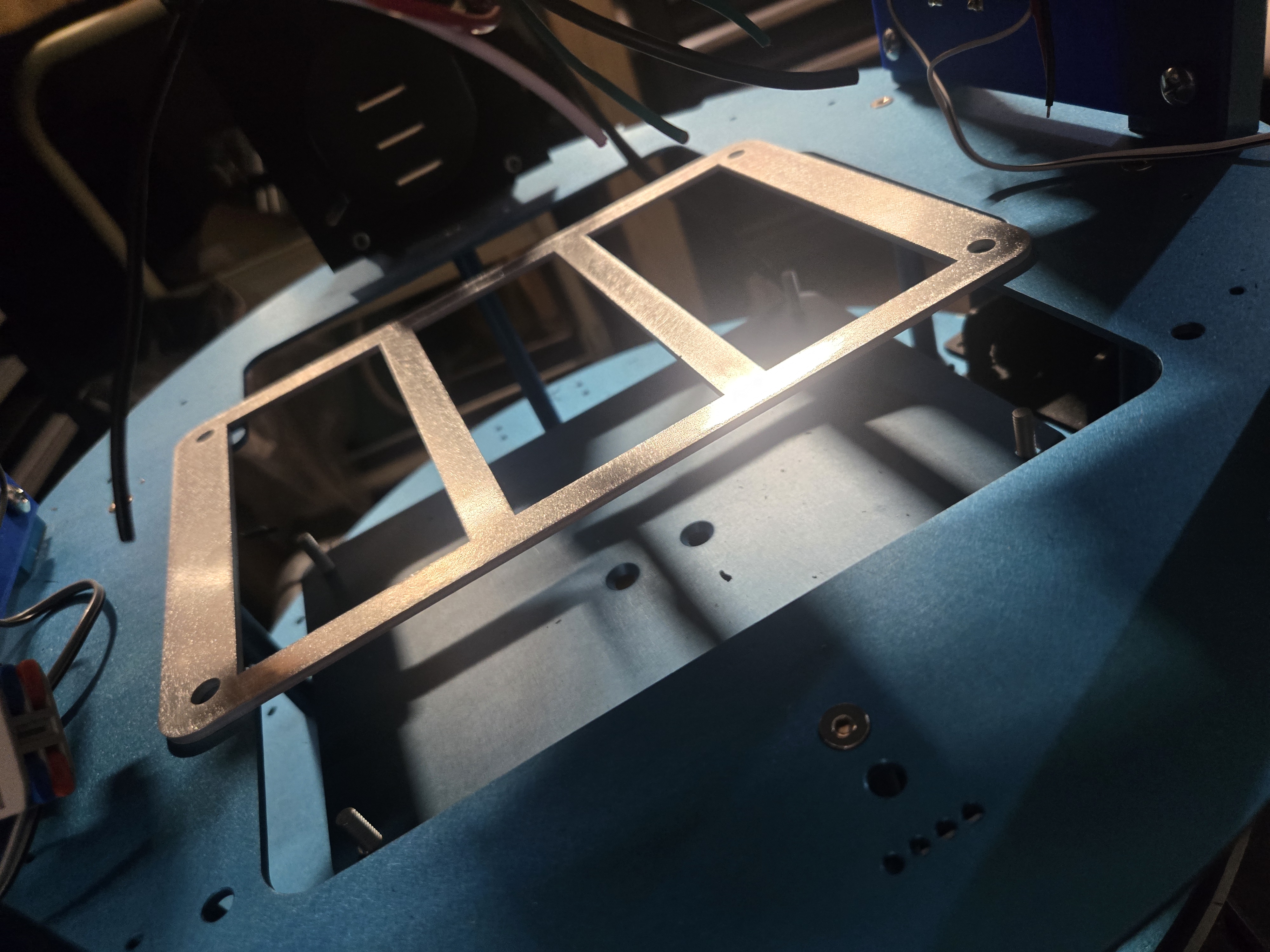

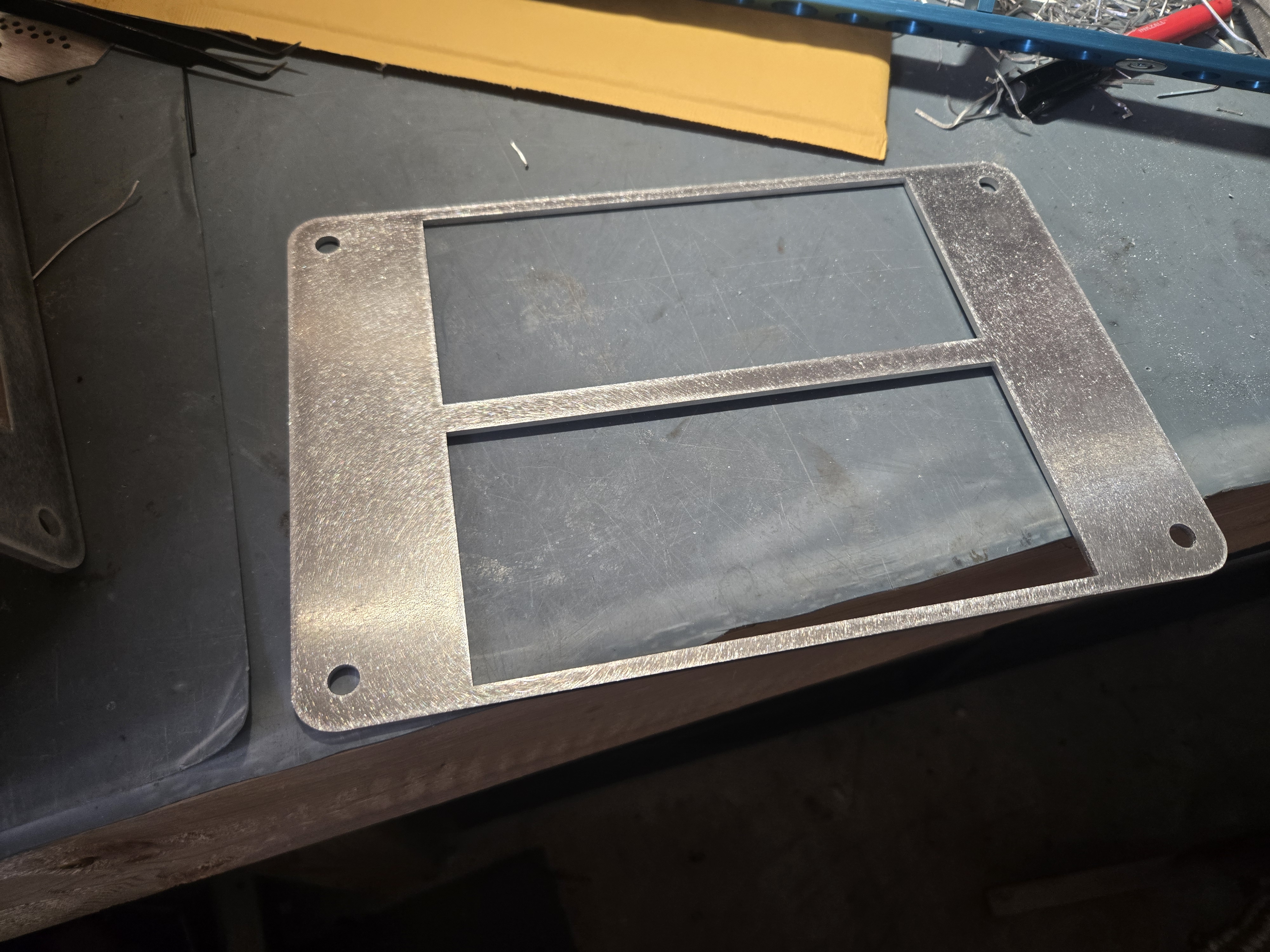

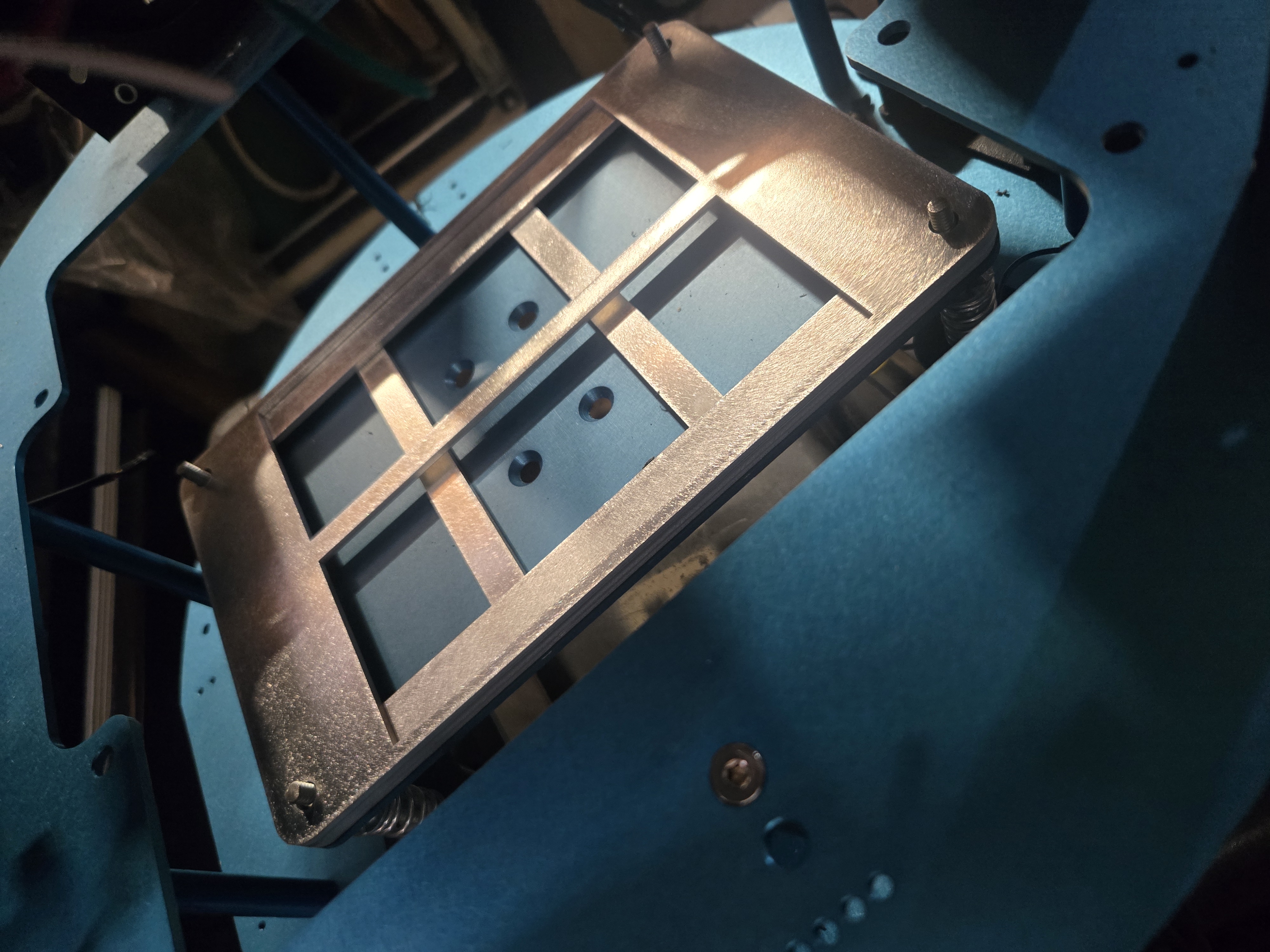

Here are some battery holder plates for anyone to use! In the file name is the measurement of the opening for said battery i got them cut in eighth inch . Im planning on using 5/16ths bolts and half inch aluminum tube from making the drives to do my spacers. hope yall enjoy

1 battery holder 5.3 x 7.7.dxf

(3.53 KiB) Downloaded 68 times

2 battery holder 3.1 x 7.2 .dxf

(3.82 KiB) Downloaded 68 times

3 battery holder 2.650 x 6.050.dxf

(4.1 KiB) Downloaded 62 times

[AFR0J3D1]

HI Chase5175,

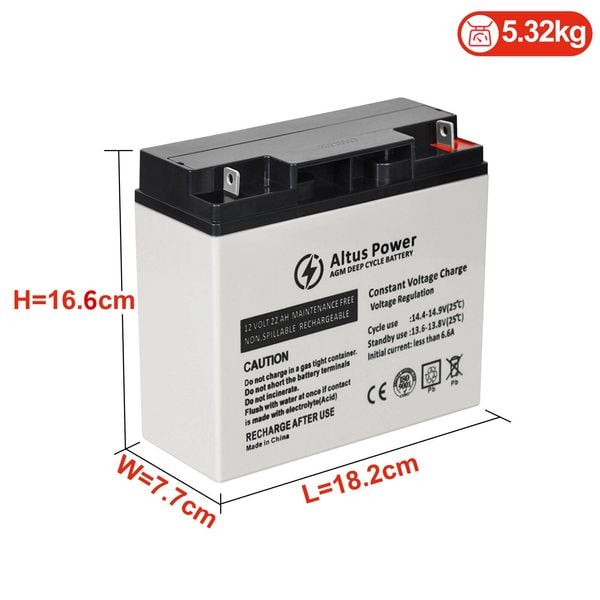

I'm wondering if I use this SLA battery which plate should I get?

[Chase5175]

Based on those measurements the 2 battery plate would fit those batteries
