Scavenger Aluminum Astromech Frame CS:R
- Adobe Express - att.gEKgeIgpFFH2jMP51snIQ5tBRLKPs_q-kNF4WkA15Vw.gif (4.99 MiB) Viewed 607 times
Read Me First ----- This Frame is Not Build Council approved. We have built the frame to club specifics and have tested with some club parts we cannot guarantee all club parts will fit! you may need to make minor modifications for some parts after all you are a Droid builder not a Droid assembler! Parts From Xometry are made by various subcontractors and some holes may need to be reamed with a drill this is expected I have had some parts shipped smooth as butter and some needing to be filed or drilled please keep this in mind when ordering.
Tested Club Parts List
Daren Murrer R2 Dome and Lazy Susan
Doc Snider R5 Dome
Scavenger Pocket and Side Vents
Philip Wise Skins
Assembly Guide

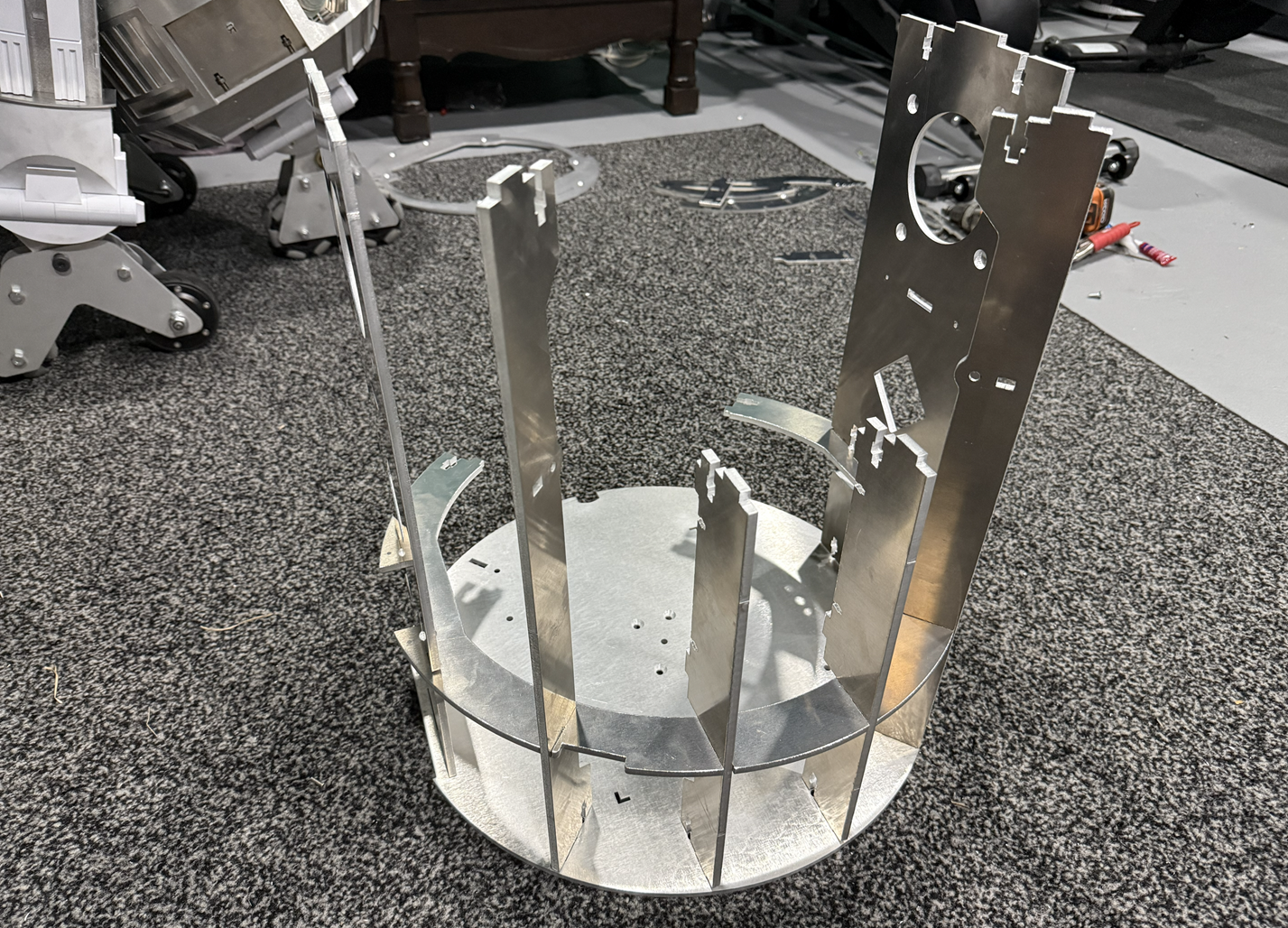

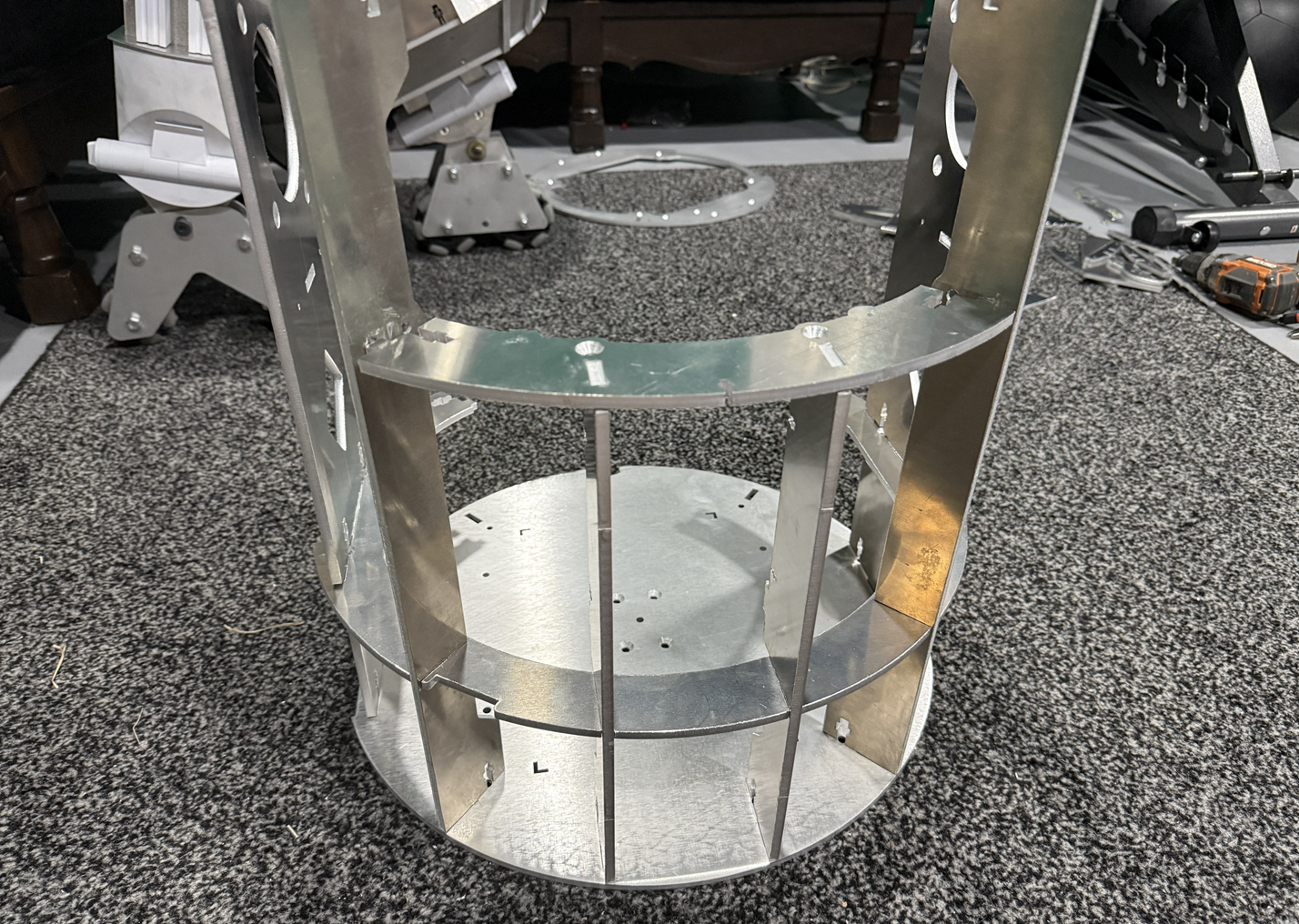

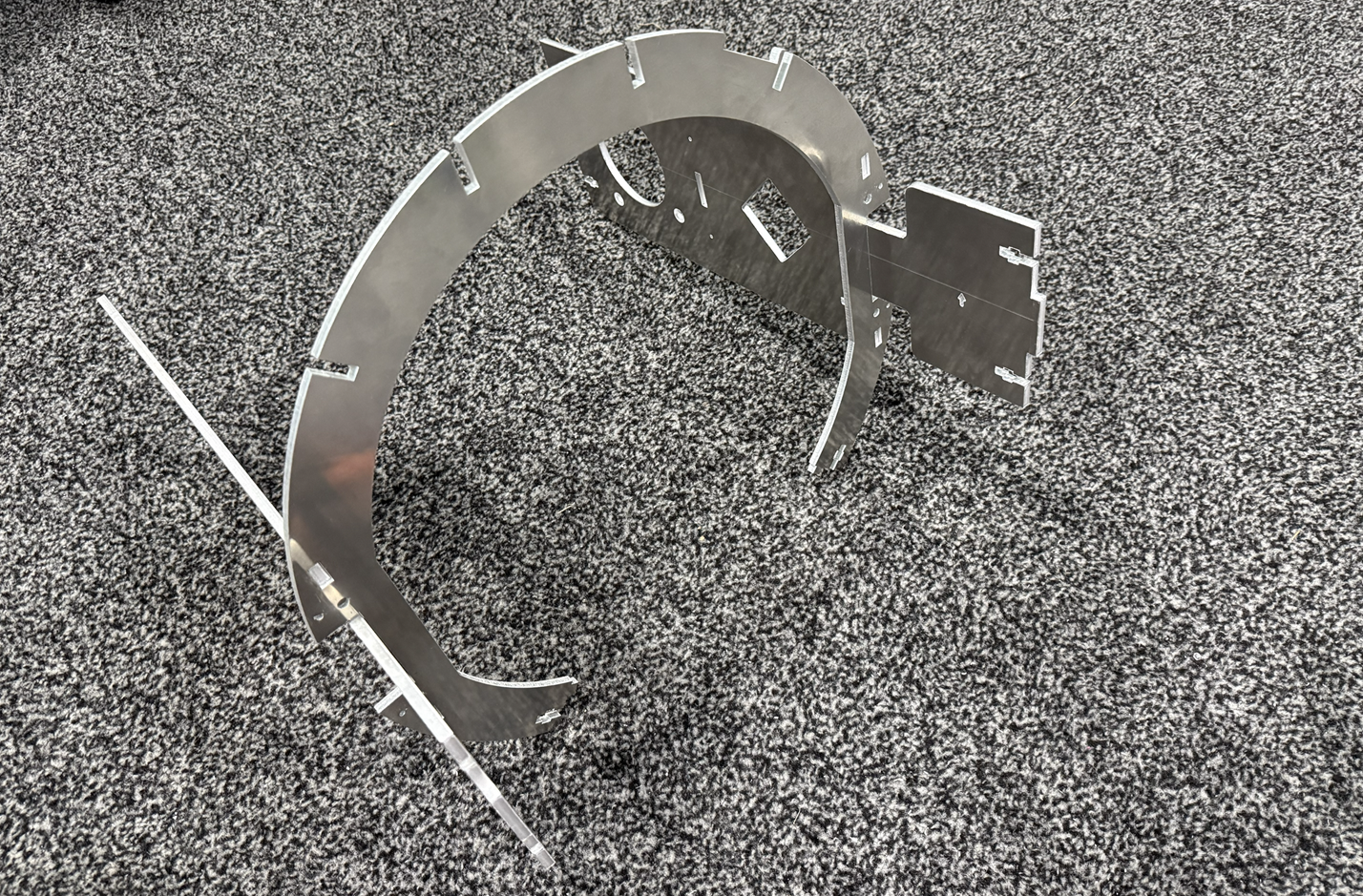

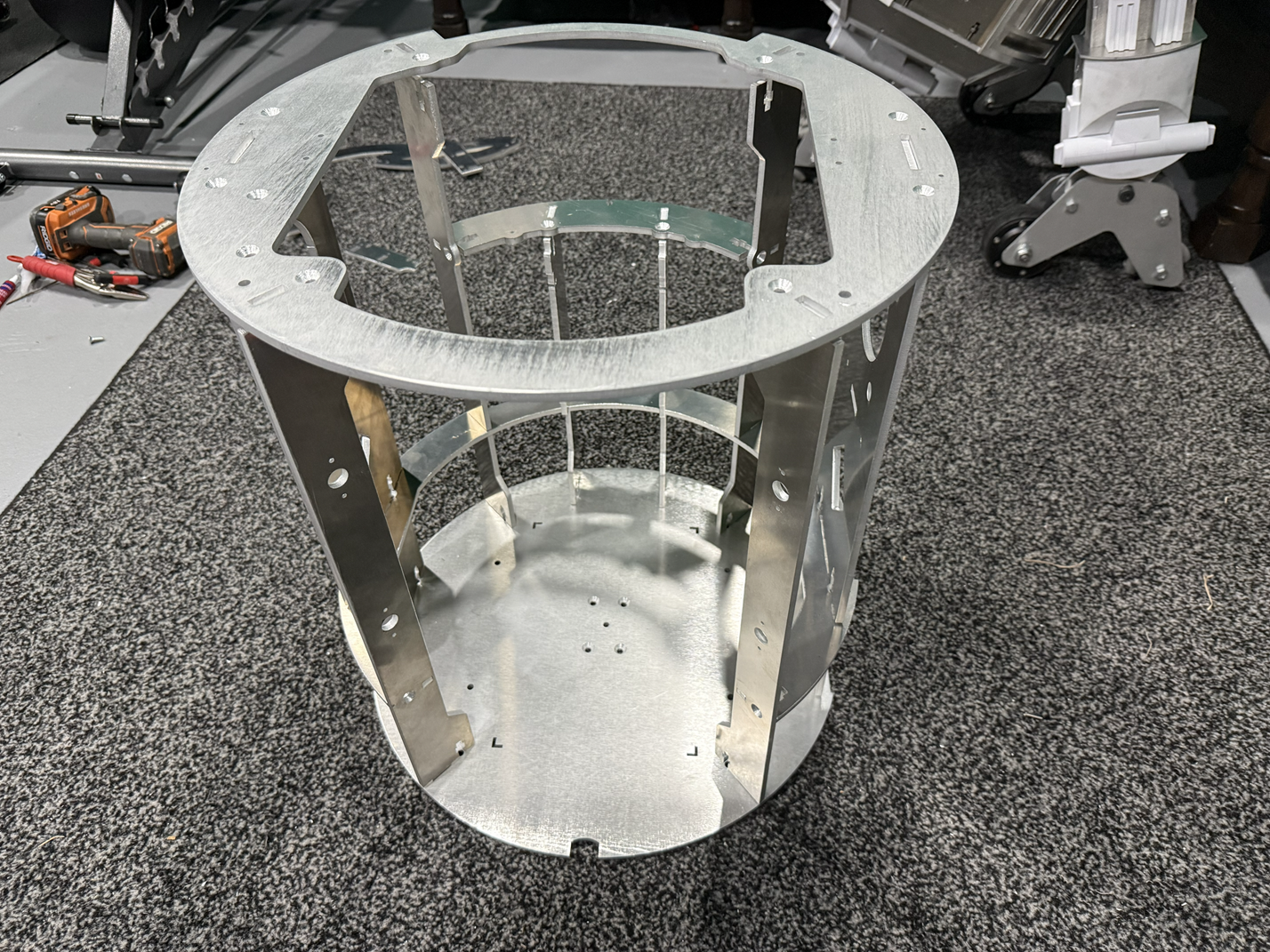

Scavenger Frame Assembly Guide
Build OF Materials
Scavenger Frame 1.0 Bill of Materials
These files have been tested with Send Cut Send and Xometry if you receive anything different then what is shown or have received a part that is defective please contact the manufacturer. Scavenger workshop cannot guarantee manufacture defects.
Files can be found here for a small donation to charity. Subscription grants access to all files or you can choose one time purchase for $10
https://www.patreon.com/c/ScavengerWorkshop
File 1 of 3

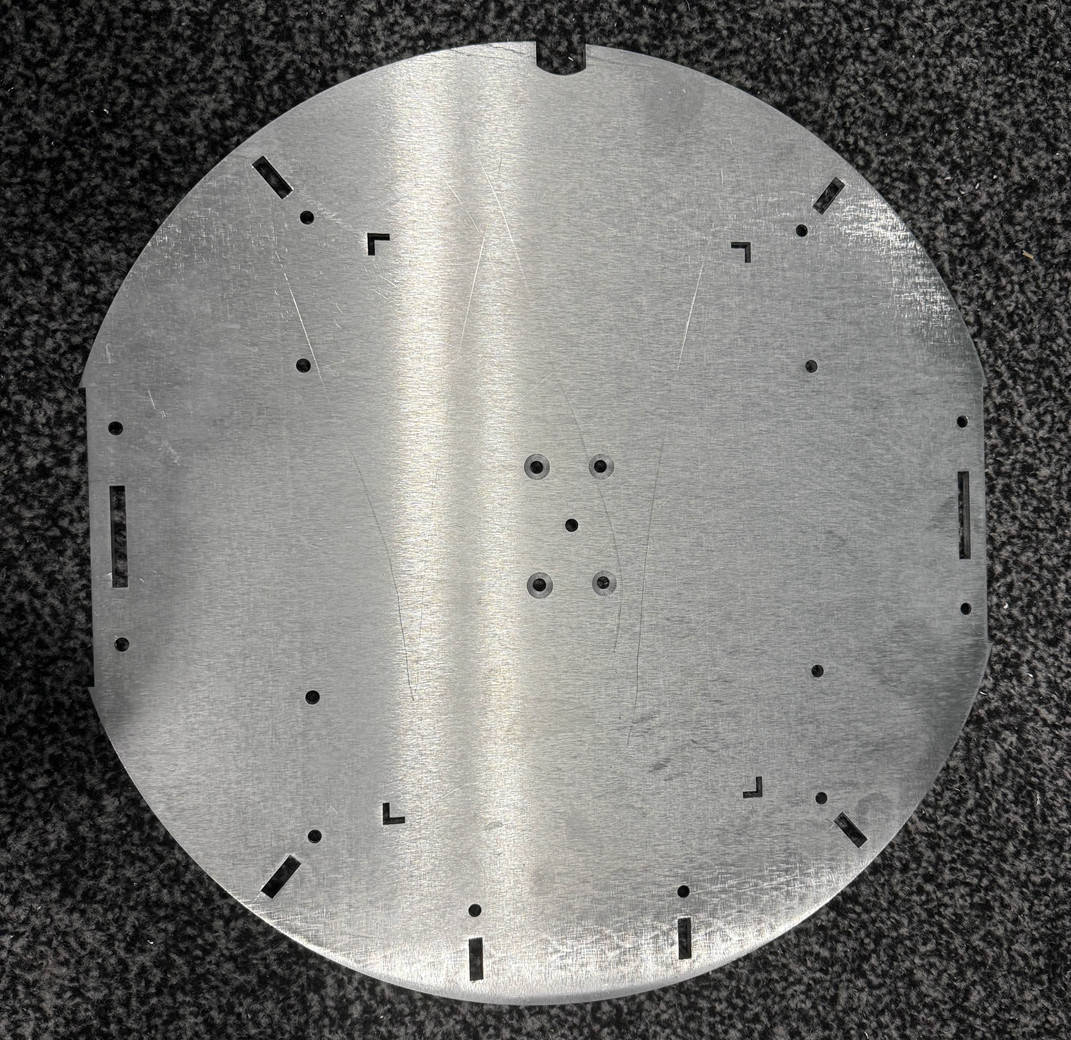

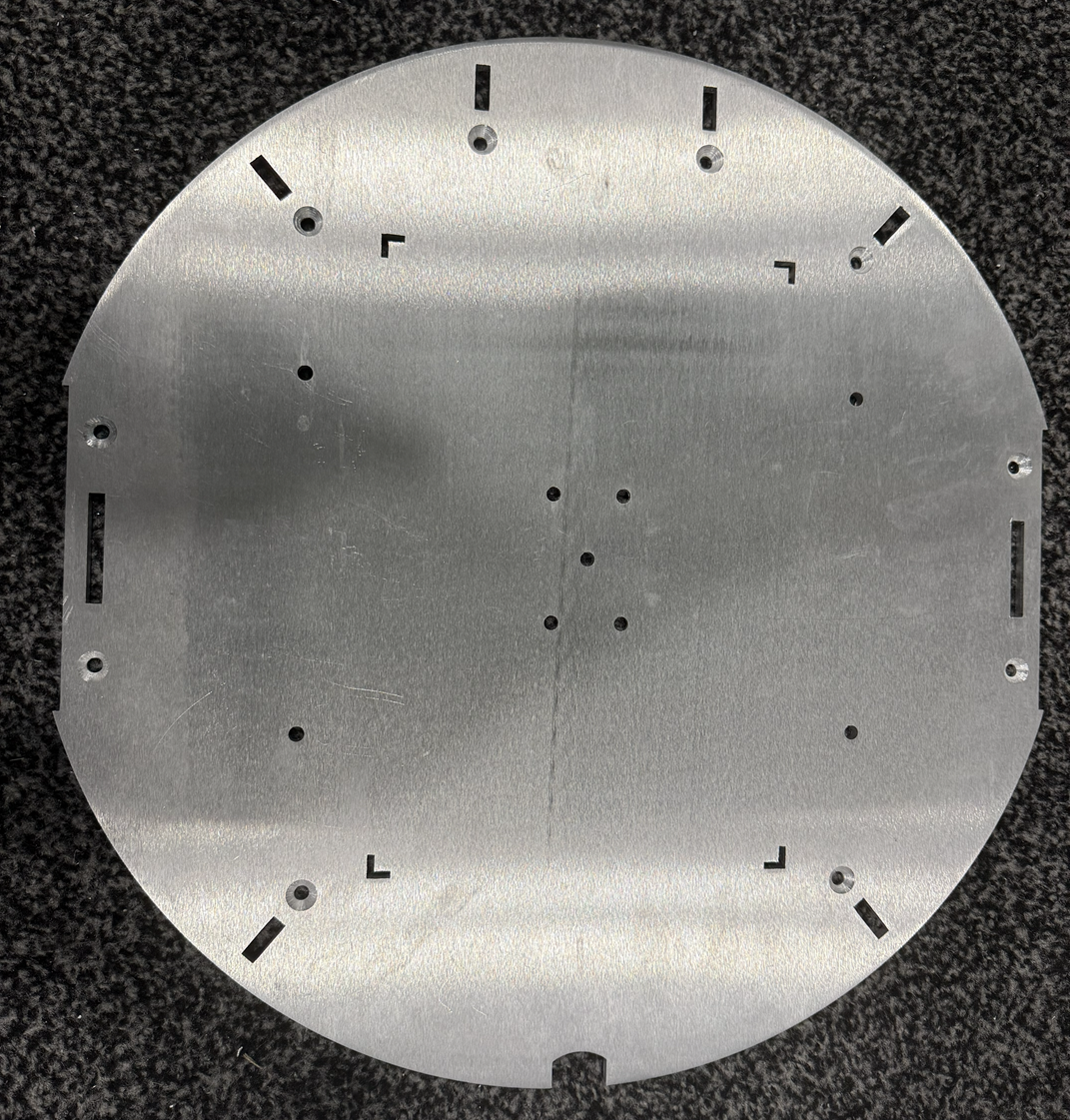

5052 H32 Aluminum (.250")
File 2 of 3
5052 H32 Aluminum (.188")
File 3of 3
5052 H32 Aluminum (.040")
Parts List
Material List (Buy a few extra we use similar parts for other kits) Sorry about the links Spammers have ruined it for everyone
2 X 18-8 Stainless Steel Hex-Drive Flat Head Screw, M6 x 1 mm Thread Size, 25 mm Long
https://www.mcmaster.com/92125A242/
1 X Steel Hex Nut, Medium-Strength, ISO Class 8, M6 x 1 mm Thread Size
https://www.mcmaster.com/90592A016/
1 X Zinc-Plated Steel Hex Nut, Medium-Strength, ISO Class 8, M3 x 0.5 mm Thread Size
https://www.mcmaster.com/90591A250/
1 X 18-8 Stainless Steel Hex-Drive Flat Head Screw, M3 x 0.5 mm Thread Size, 15 mm Long
https://www.mcmaster.com/92125A103/
- 603956261_868878358839726_7309605623141434891_n.jpg (226.3 KiB) Viewed 835 times
