Scavenger Workshop - Ghost Busters 2 - Aluminum Ghost Trap fixed assembly

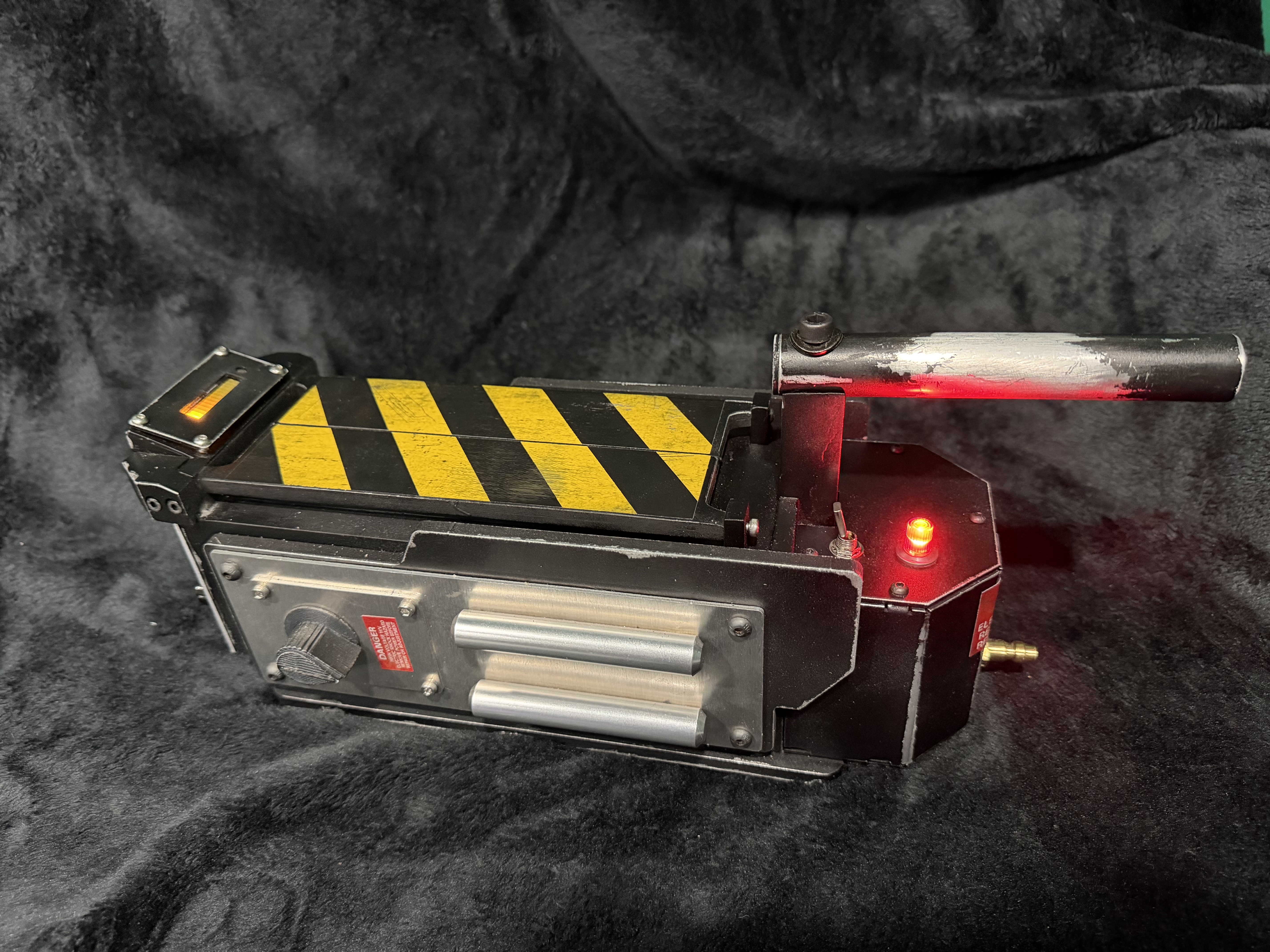

- IMG_0056.jpeg (5.28 MiB) Viewed 5558 times
This listing provides a fully preconfigured aluminum Ghost Trap kit designed by Scavenger Workshop and ready to order directly through SendCutSend. Every part has already been set up with the correct aluminum type, thickness, and bend requirements.

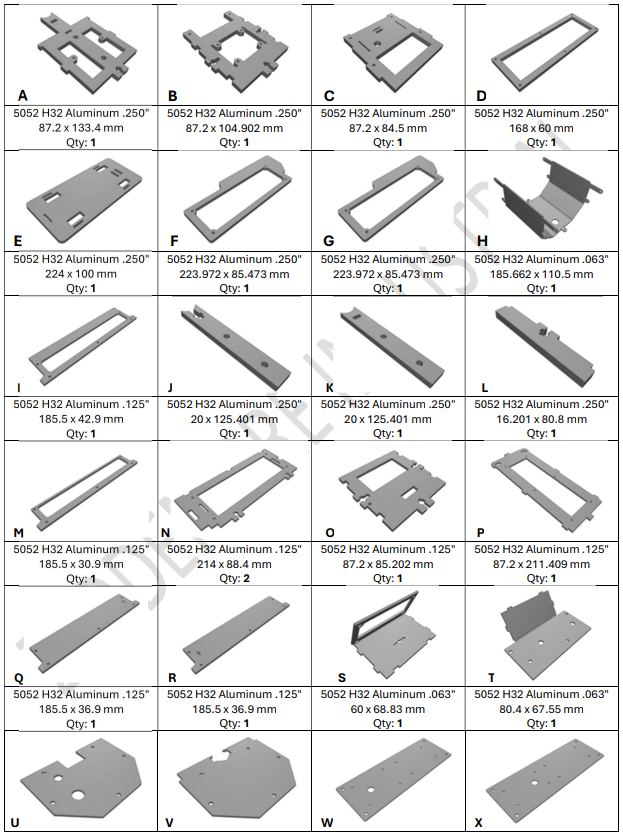

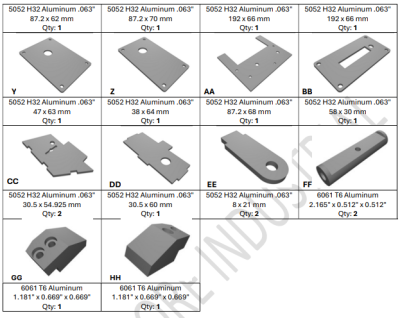

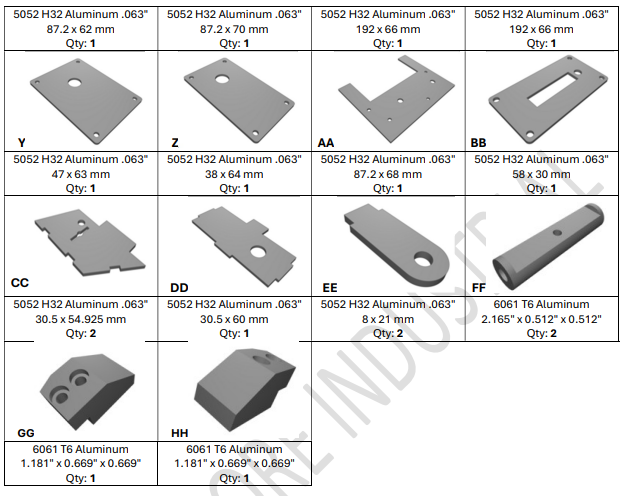

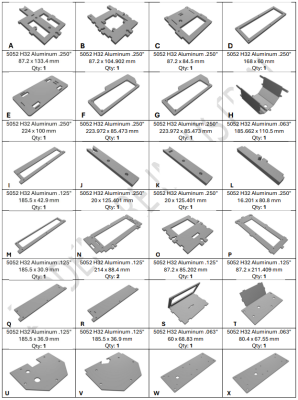

Instead of worrying about material selection, tolerances, or bend angles, everything is handled for you so you can confidently move straight to production. You simply review the parts, add them to your cart, and place your order. The kit includes all major aluminum components required to assemble the Ghostbusters Ghost Trap body, using 5052 H32 aluminum in multiple thicknesses with preconfigured bend operations where needed.
This version does not include the dog ears or axle components, as those require separate machining and must be sourced independently. This is a builder-focused project, not a finished product, and some basic finishing work should be expected such as light filing, cleanup, alignment, and optional body work like sanding, filler, and paint. This approach is intended to provide a streamlined, low-risk entry into aluminum prop building while still delivering a hands-on, authentic assembly experience.

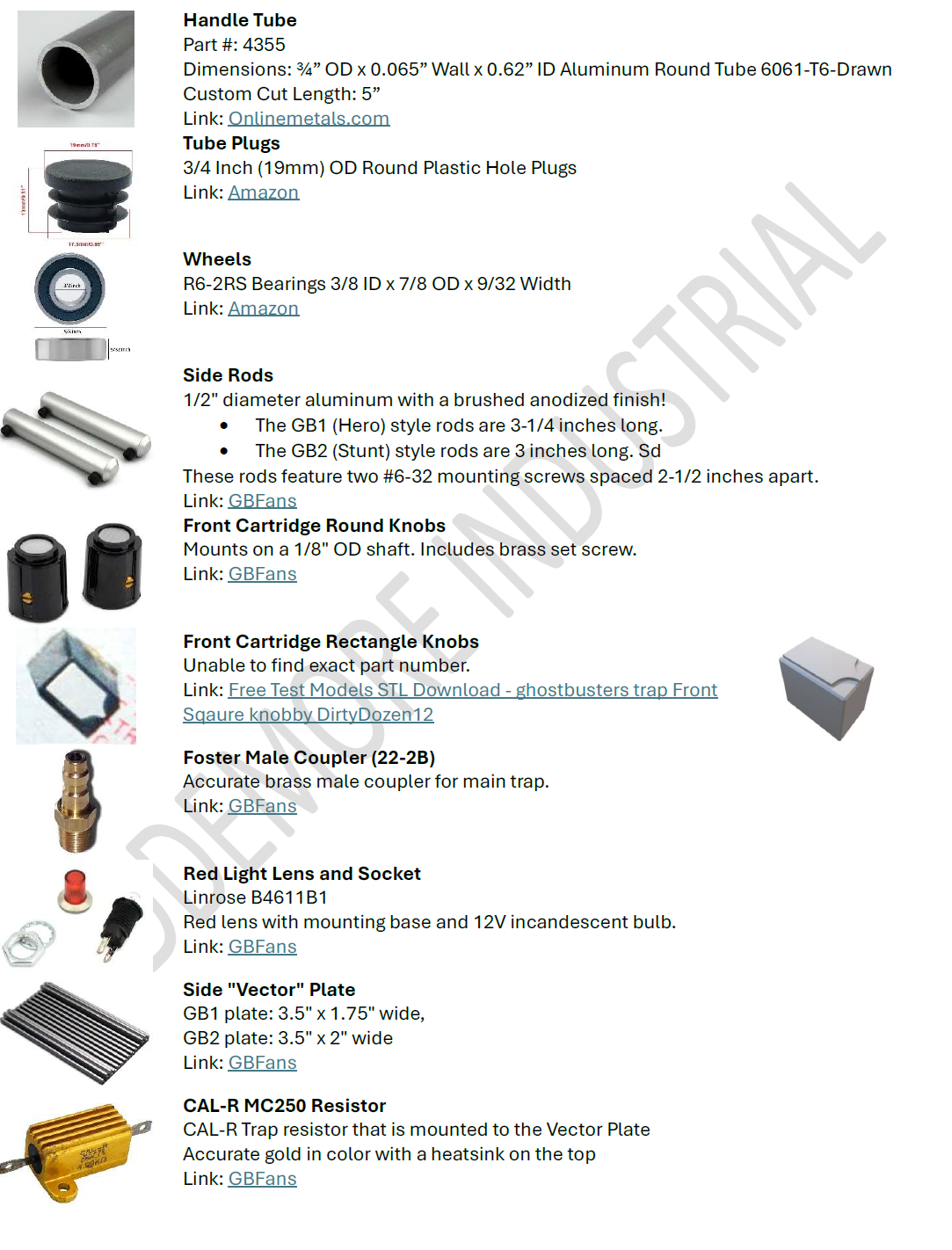

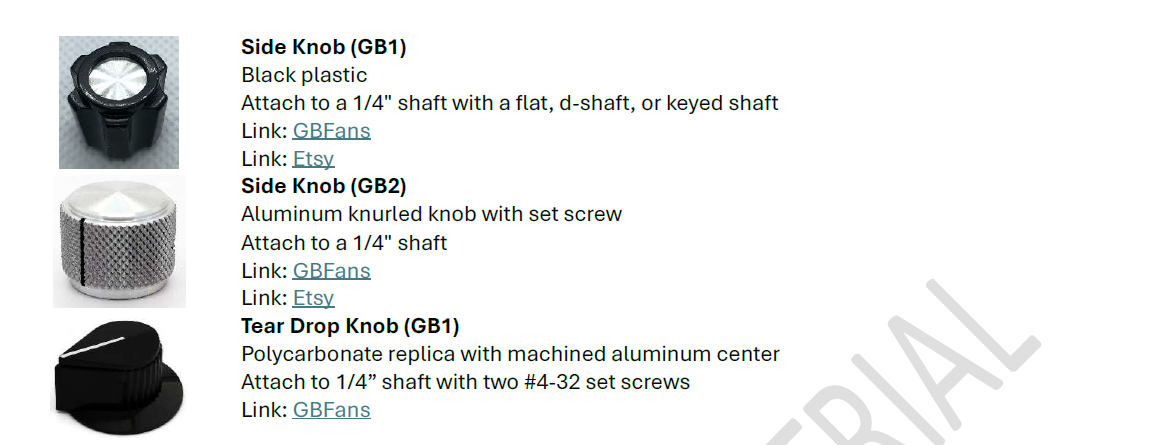

Product Shown has been completed with additional parts not included. Side Tubes, Hat Lights, Knobs, Vector Plate, Resistor, Male Coupler and switches will need to be acquired from other suppliers a good resource for those supplies is https://www.gbfans.com/shop/trap-parts/0/ .
Revision Info (Current Revision 4)
- Added holes for axles
- Added relief cut for wheels
- Threaded holes in side on inner housing to allow screw on side panels
- Added relief on bottom plate to allow it to sit flush
- Extended rear Segmented LED Box main plate assembly by 1mm to allow filing to be more accurate
- Slotted Segmented LED Box Wire passthrough
- Adjusted servo mount tabs 1mm away from door frame for a better fit.
Files
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
United States Imperial Files (Revision 4)
This is for a Single order set up as a shopping cart, This was done to prevent people from mistakenly misconfiguring their order.

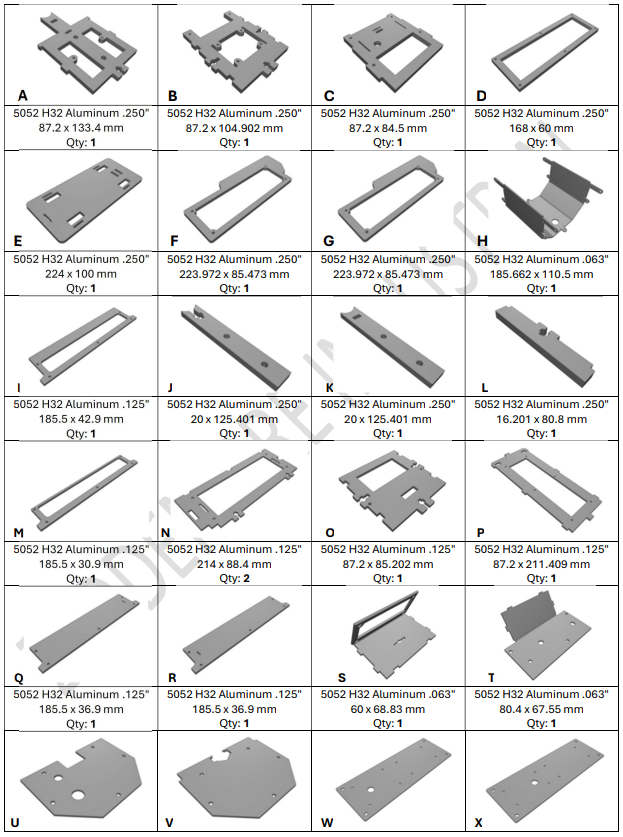

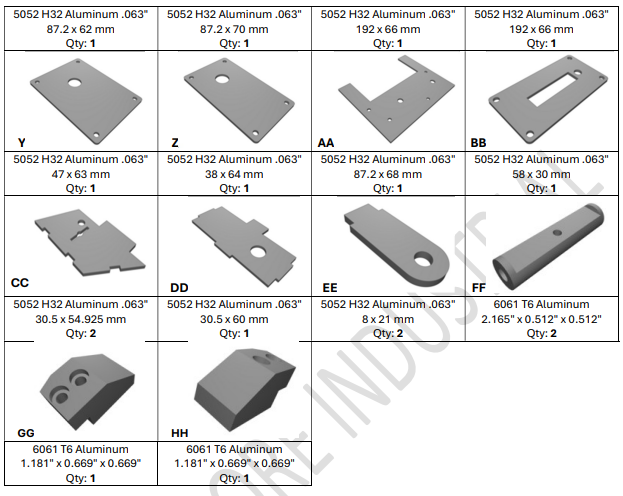

Main Body (This is the main body of the build)
https://marketplace.sendcutsend.com/p/C ... -version-4
- trap-body.png (6.2 KiB) Viewed 5510 times
Dog Ears (The Dogears are the CNC parts that go on either side of the segmented LED box)
https://marketplace.sendcutsend.com/p/C ... p-dog-ears
- DogEar.png (4.77 KiB) Viewed 5514 times
Axle (These are the CNC aluminum Axles)
https://marketplace.sendcutsend.com/p/C ... ined-axles
- Axle.png (4.68 KiB) Viewed 5513 times
3D Printed version of the Files (Revision 2)
Scavneger-GhostBusters-Trap.zip- (289.64 KiB) Downloaded 64 times
Metric Files Non US Orders (Revision 2)
- Scavenger-GhostBusters-Trap-Metric.zip
- (40.69 KiB) Downloaded 50 times
Dog Ears and Axle CNC (If you want to buy it else ware)
- Ghostbuster-2-Trap-CNC-Parts.zip
- (13.8 KiB) Downloaded 58 times
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PDF Tutorial Document
Metal%20Ghost%20Trap_Final.docx- (17.97 MiB) Downloaded 76 times
- Metal%20Ghost%20Trap%20(Fixed%20Body)%20Construction%20Guide.pdf
- (5.8 MiB) Downloaded 90 times

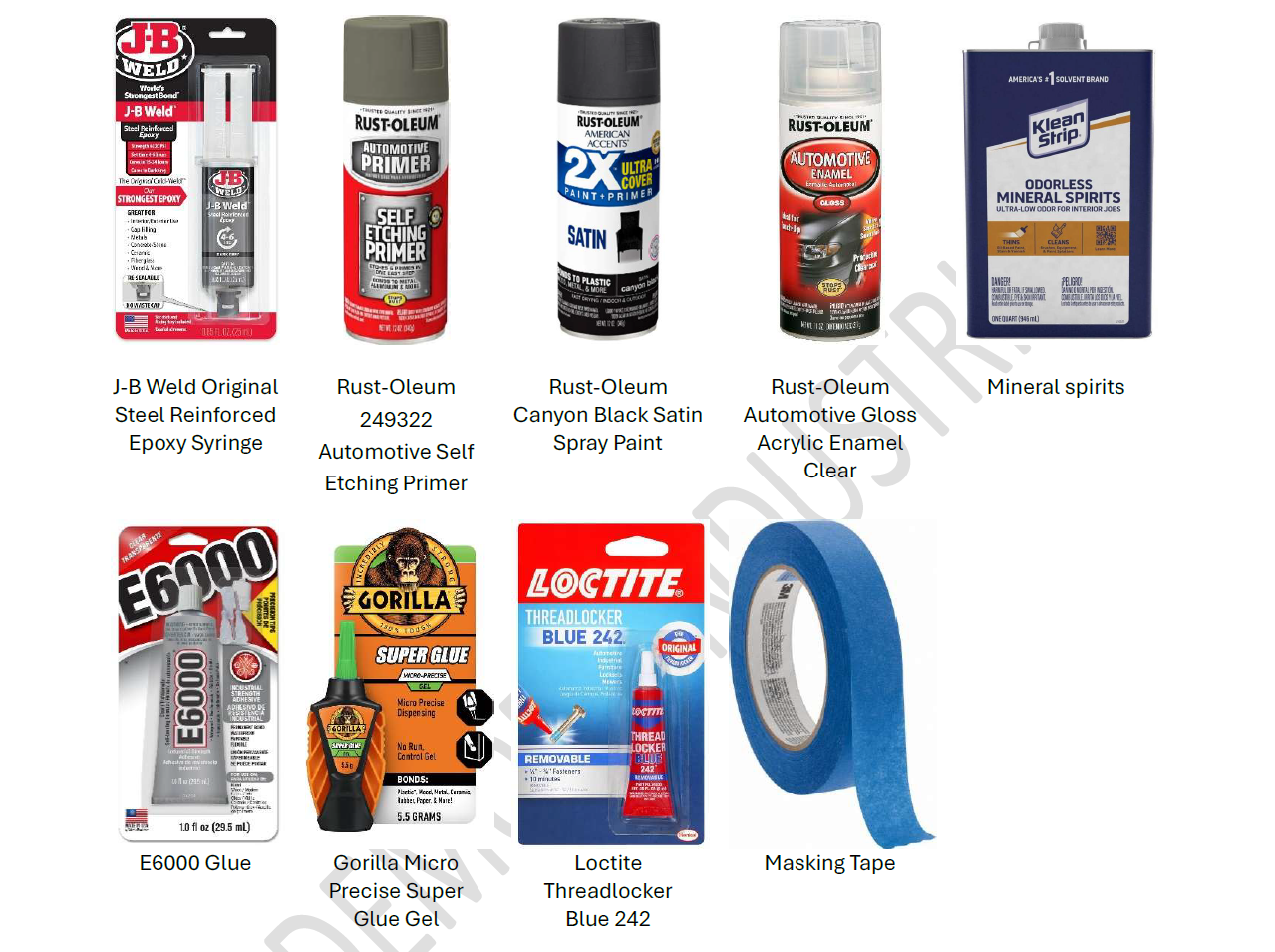

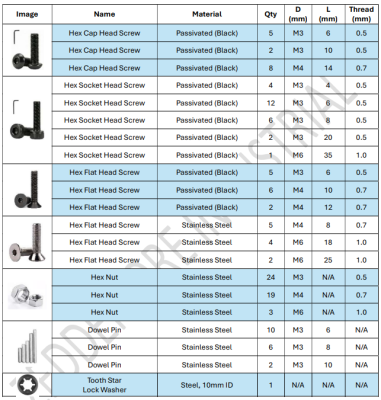

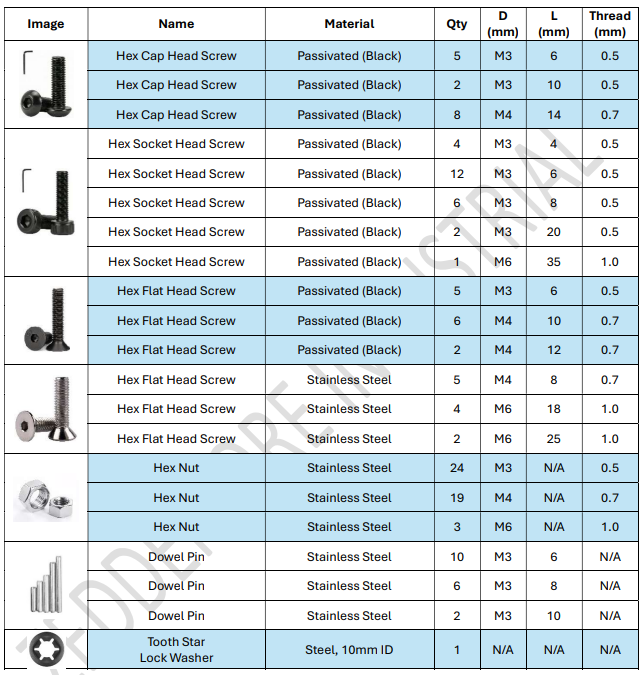

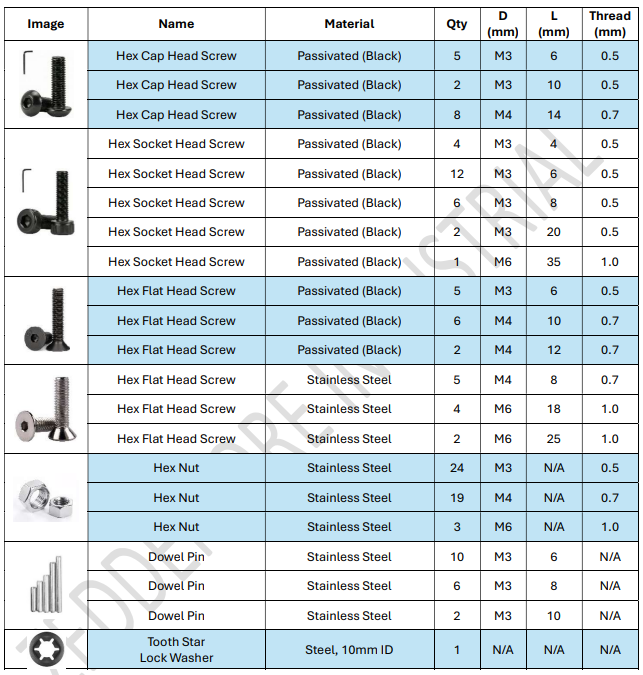

Parts List
8 X Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M4 x 0.70 mm Thread, 14mm Long
2 X 18-8 Stainless Steel Socket Head Screw, M3 x 0.5 mm Thread, 6 mm Long
2 X 18-8 Stainless Steel Socket Head Screw, M3 x 0.5 mm Thread, 20 mm Long
4 X Button Head Hex Drive Screw, Passivated 18-8 Stainless Steel, M3 x 0.50 mm Thread, 4mm Long
4 X 18-8 Stainless Steel Hex-Drive Flat Head Screw, M4 x 0.7 mm Thread Size, 8 mm Long
8 18-8 Stainless Steel Hex-Drive Flat Head Screw, M4 x 0.7 mm Thread Size, 10 mm Long
30 X Zinc-Plated Steel Hex Nut, Medium-Strength, ISO Class 8, M3 x 0.5 mm Thread Size
20 X Corrosion-Resistant 18-8 Stainless Steel Hex Nut, M4 x 0.7 mm Thread Size
3 X 18-8 Stainless Steel Hex-Drive Flat Head Screw, M6 x 1 mm Thread Size, 25 mm Long
3 X Steel Hex Nut, Medium-Strength, ISO Class 8, M6 x 1 mm Thread Size
10 X 3mm Pin 6mm Long
10 X 3mm Pin 8mm Long
2 X 3mm Pin 10mm Long
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Video Tutorials
Eye Candy

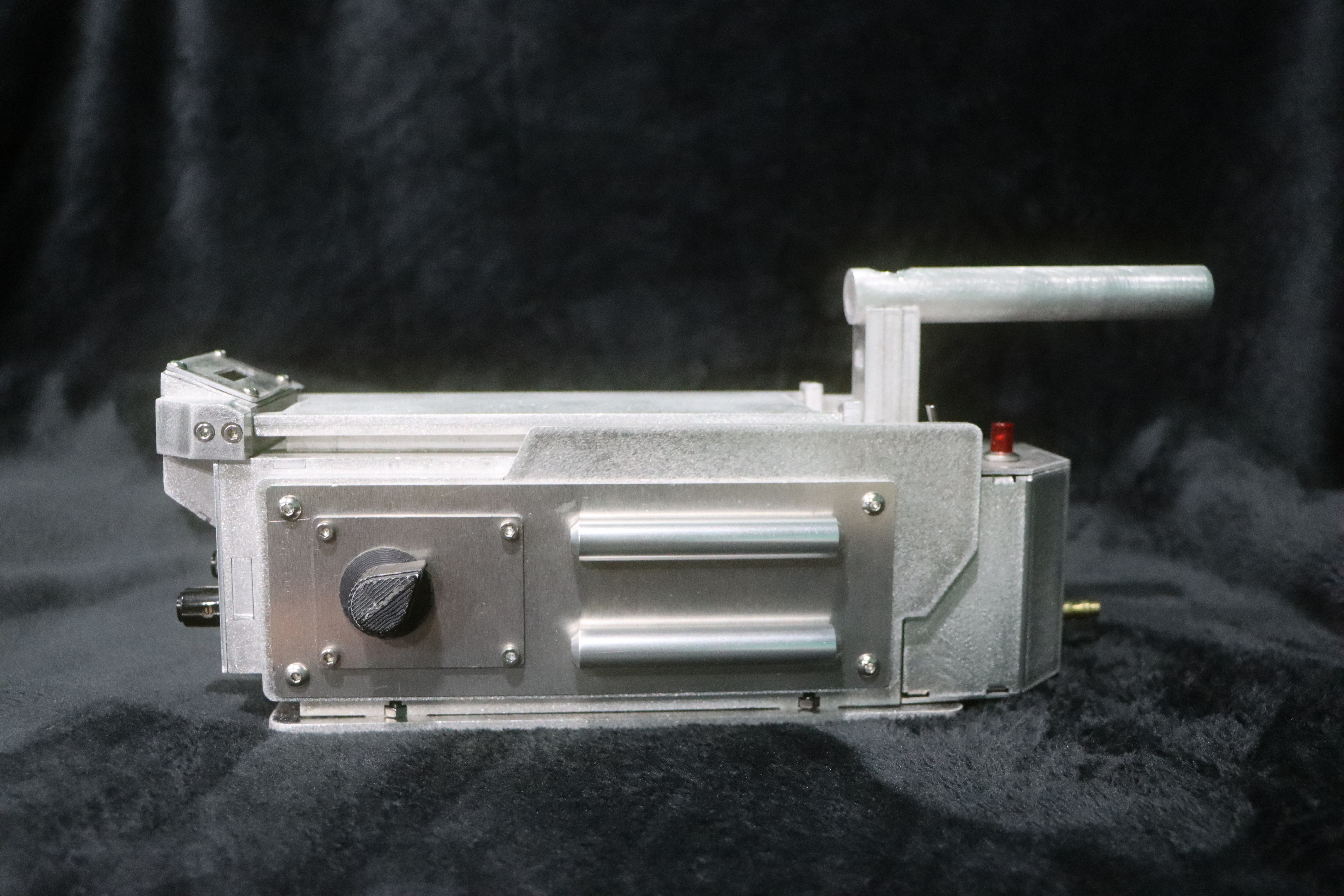

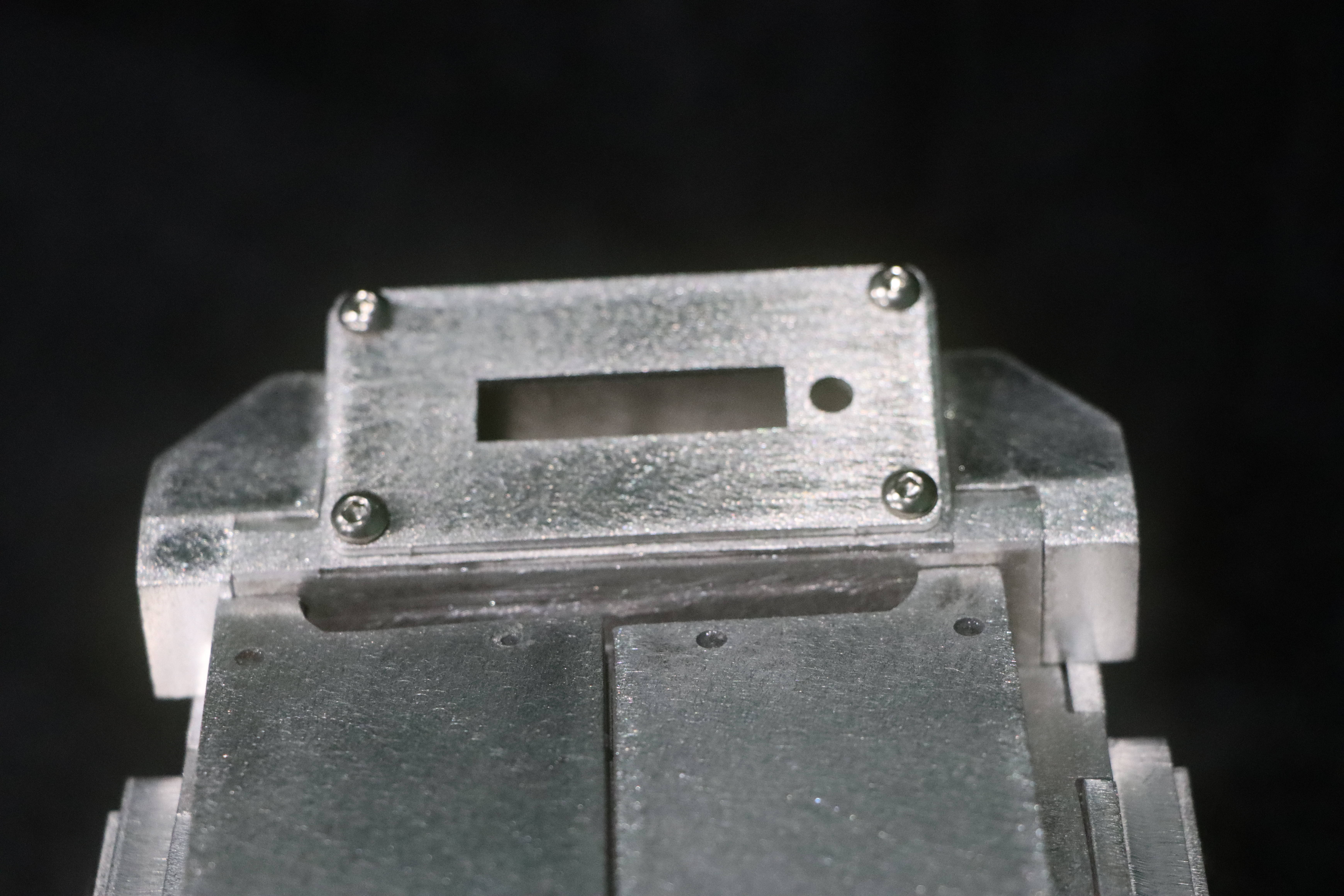

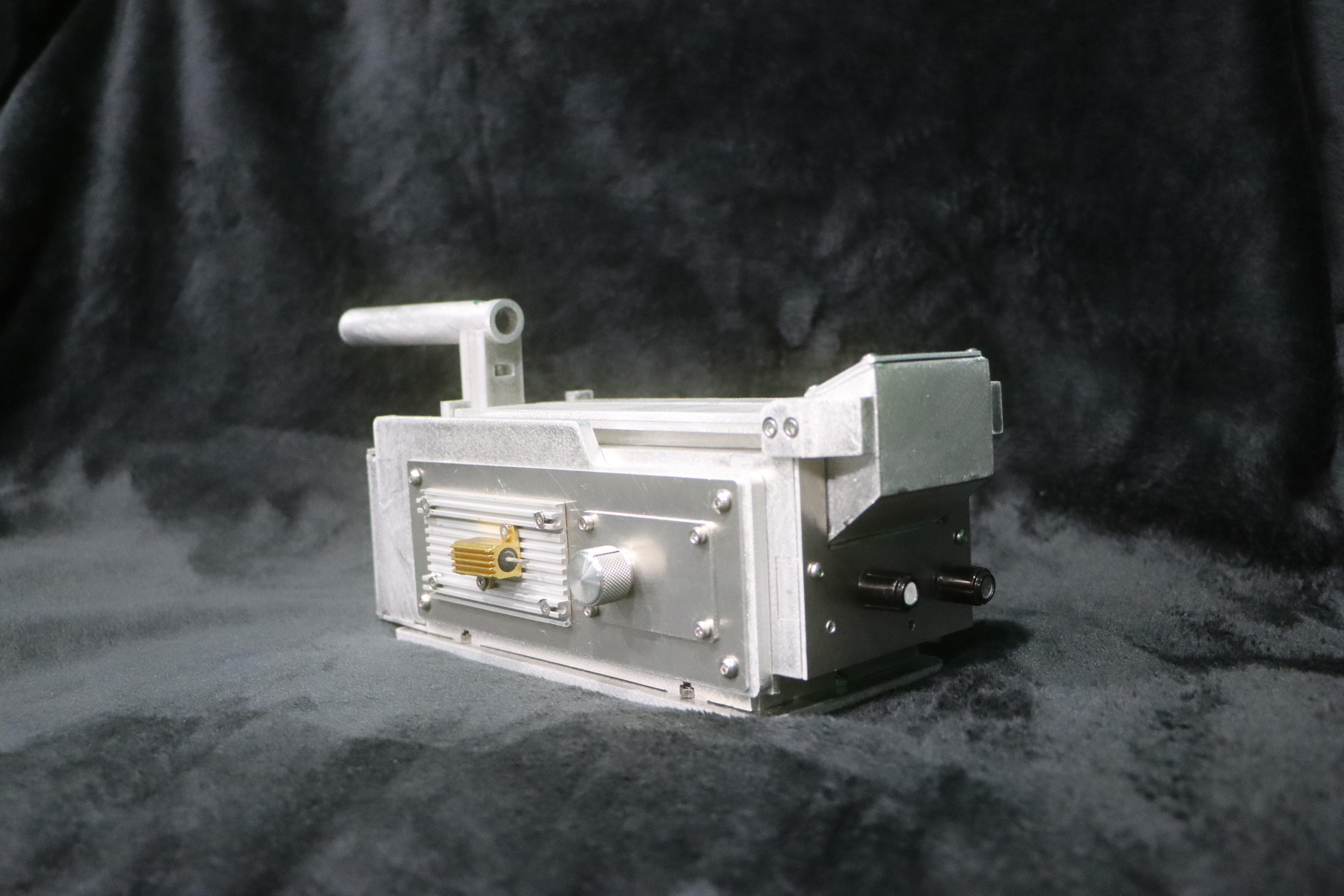

- IMG_0994.JPG (10 MiB) Viewed 5537 times

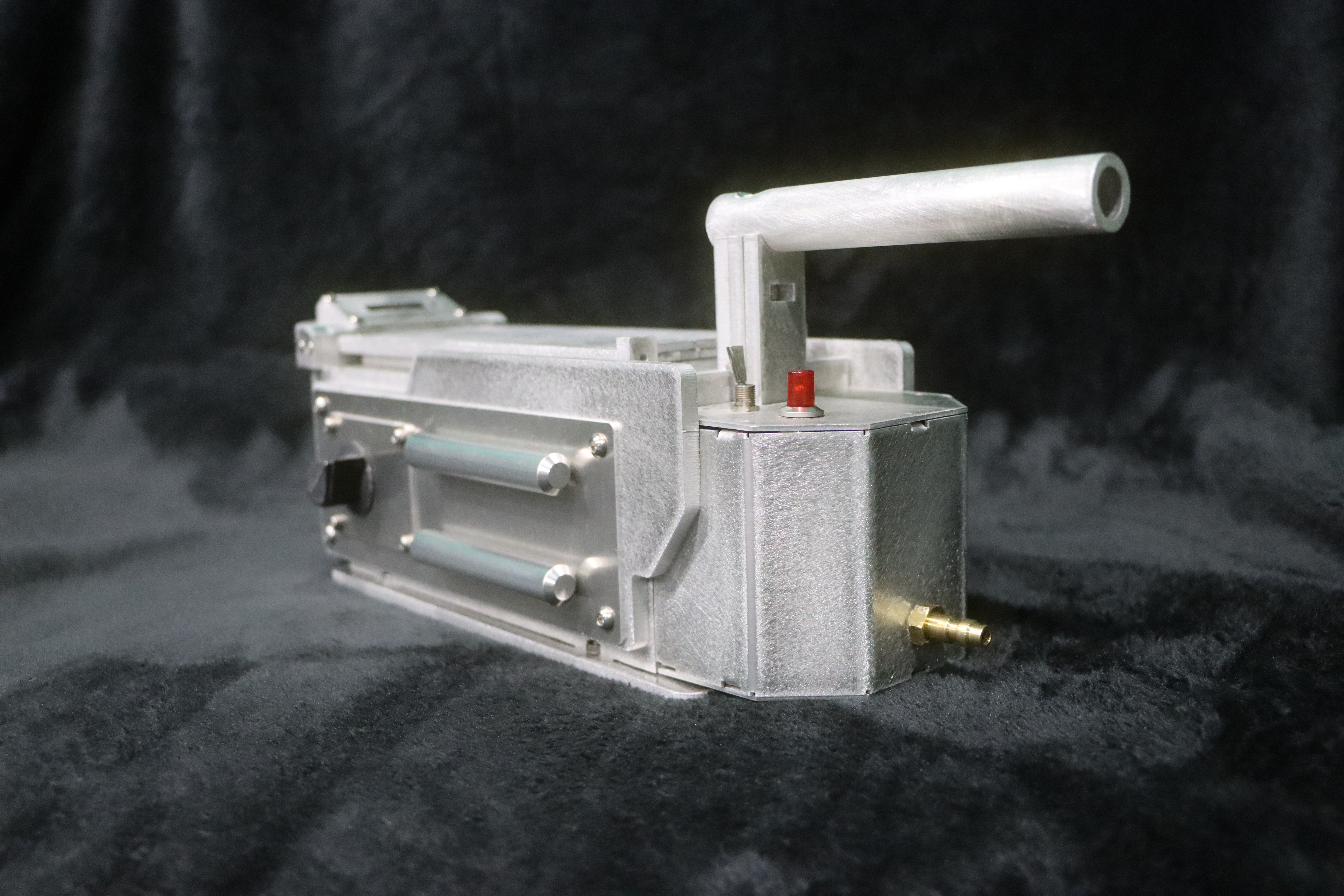

- IMG_0995.JPG (10.21 MiB) Viewed 5537 times

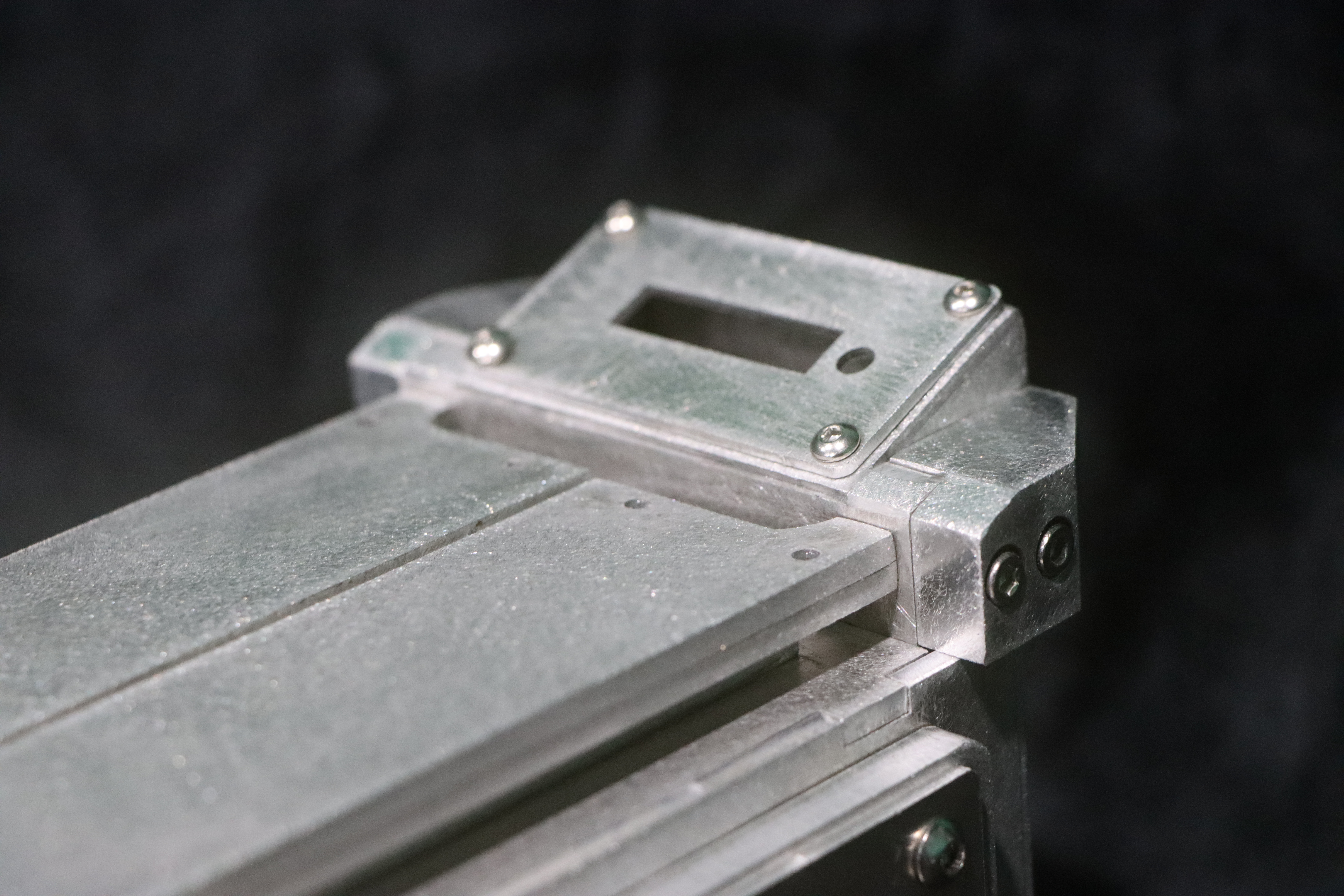

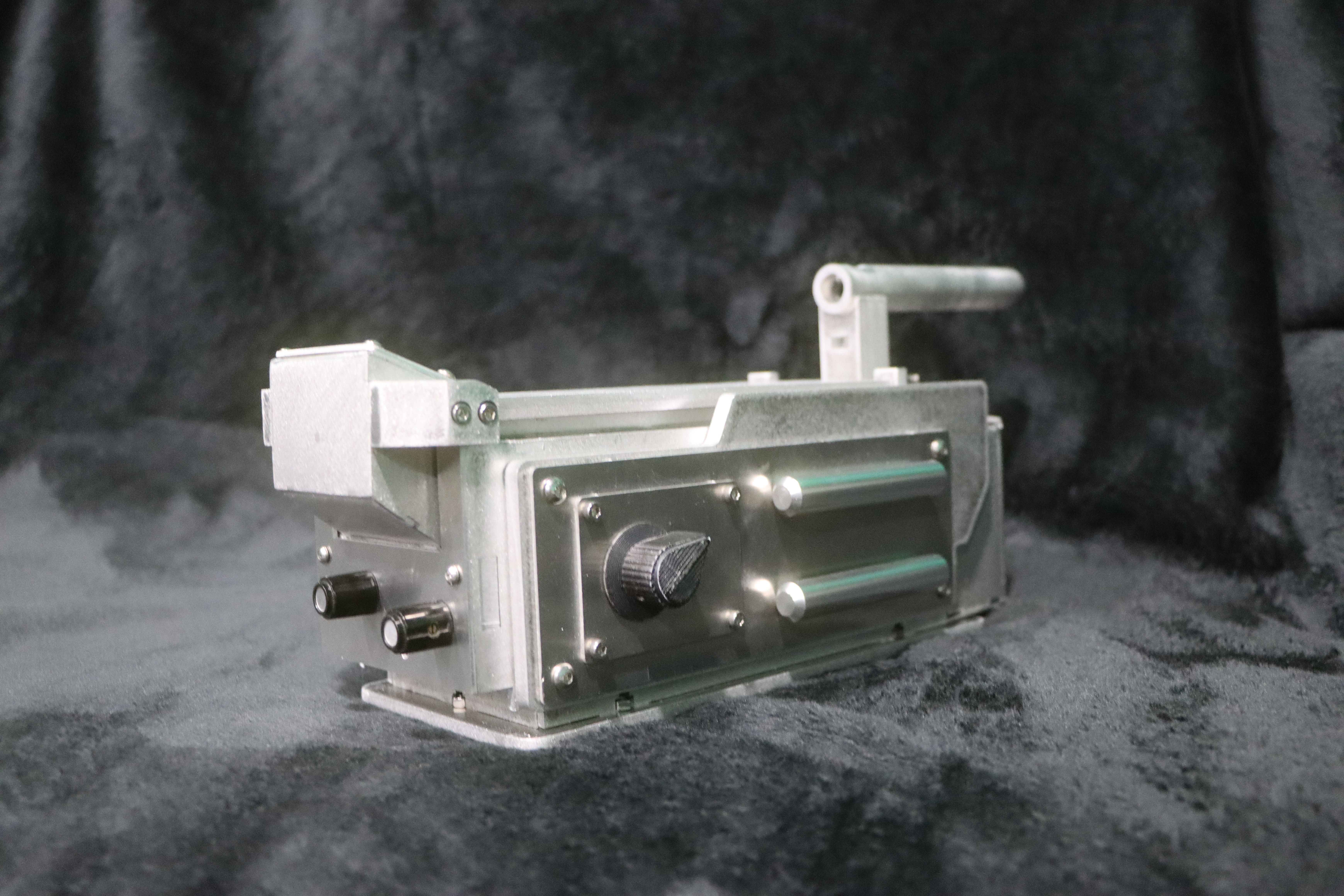

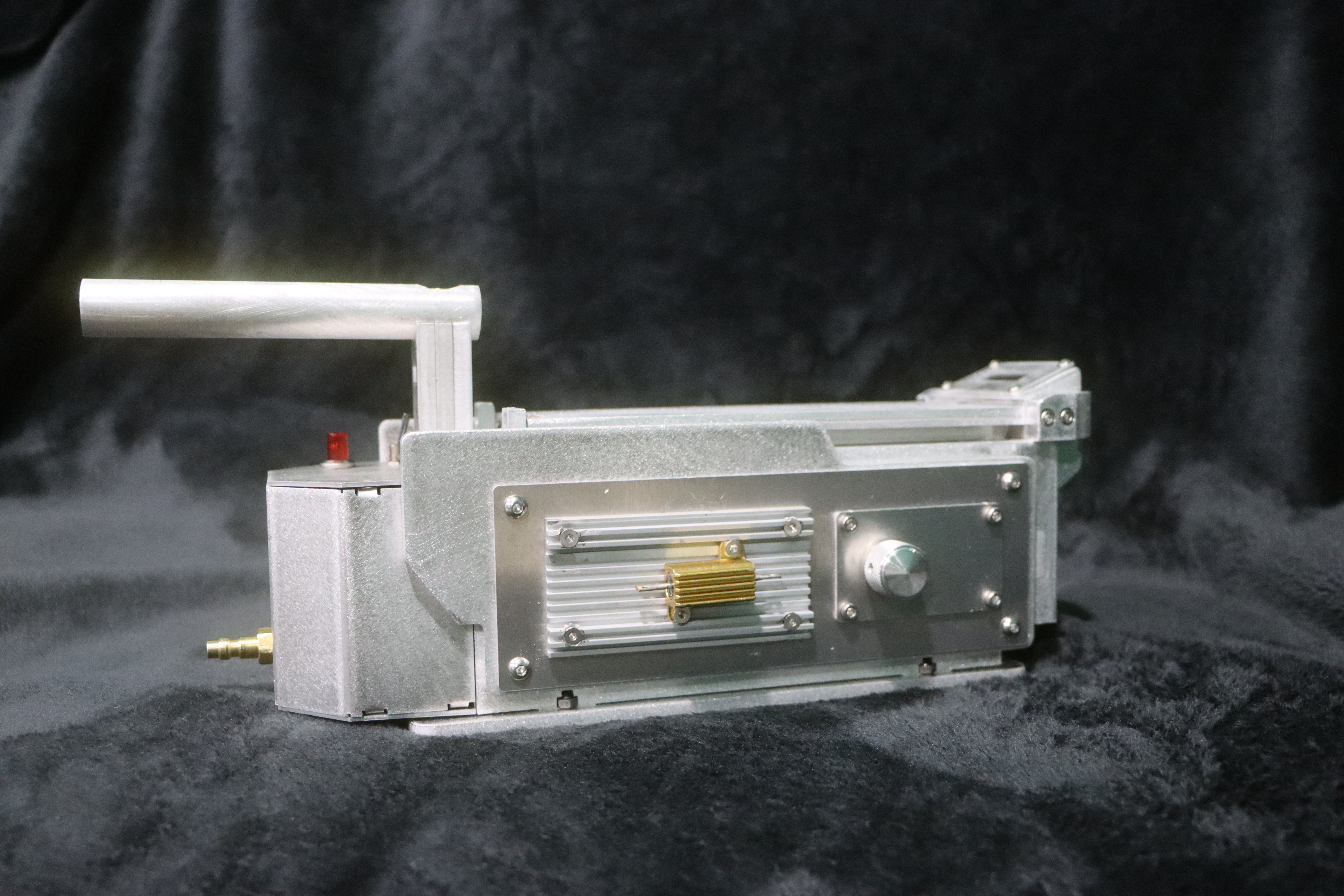

- IMG_0996.JPG (10.39 MiB) Viewed 5537 times

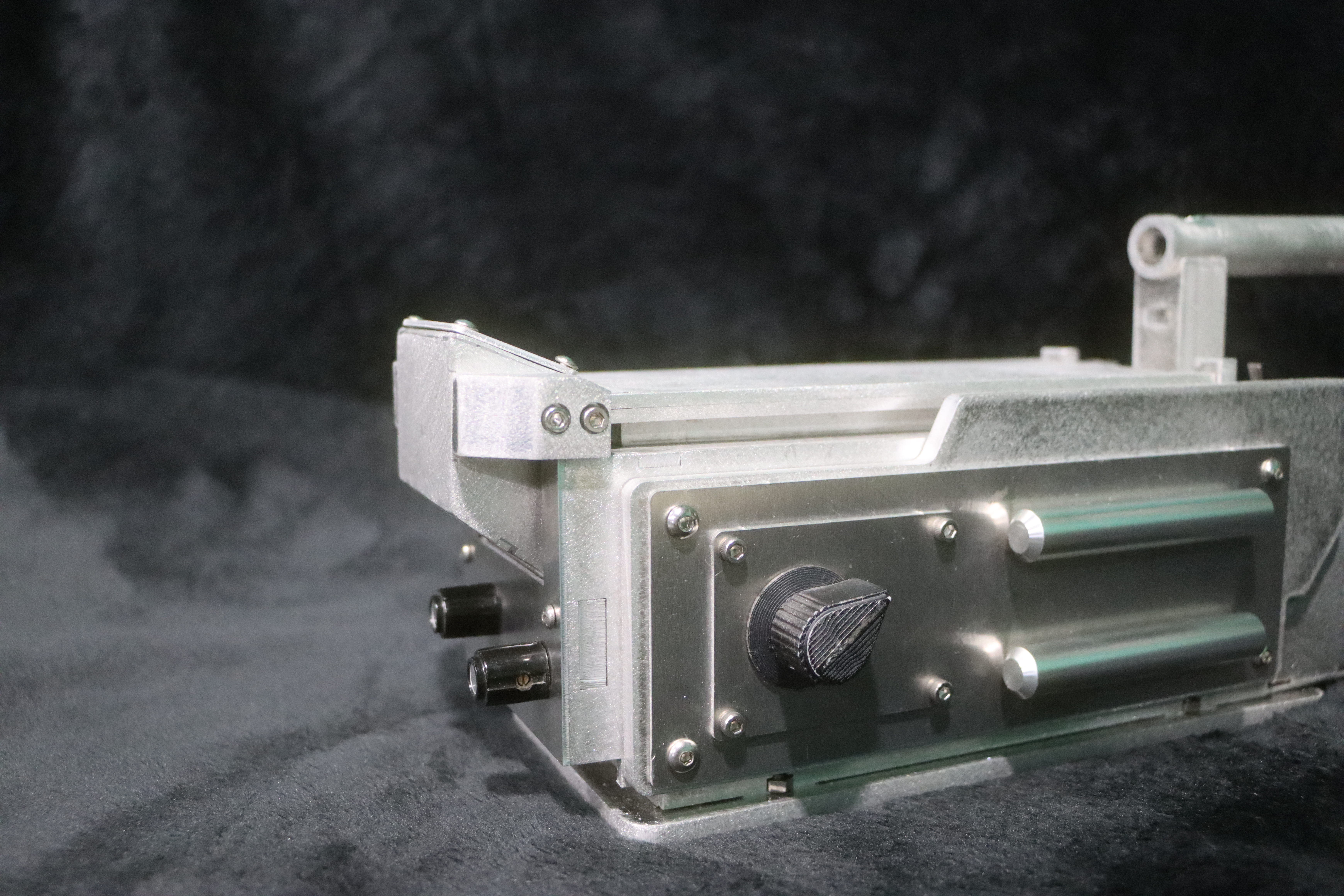

- IMG_0997.JPG (10.07 MiB) Viewed 5537 times

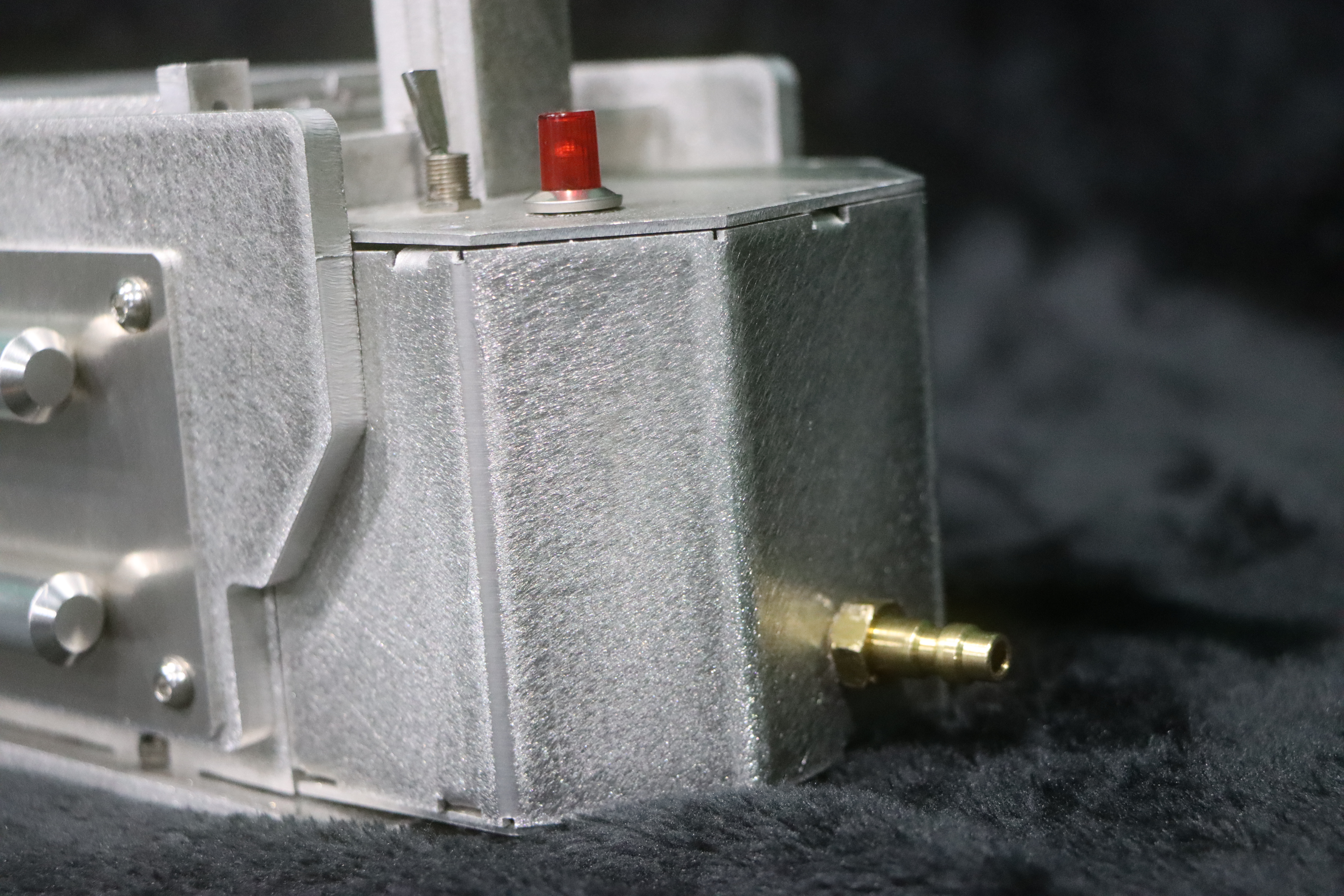

- IMG_0998.JPG (10.61 MiB) Viewed 5537 times
- IMG_0999.JPG (10.65 MiB) Viewed 5537 times
- IMG_1000.JPG (11.17 MiB) Viewed 5537 times

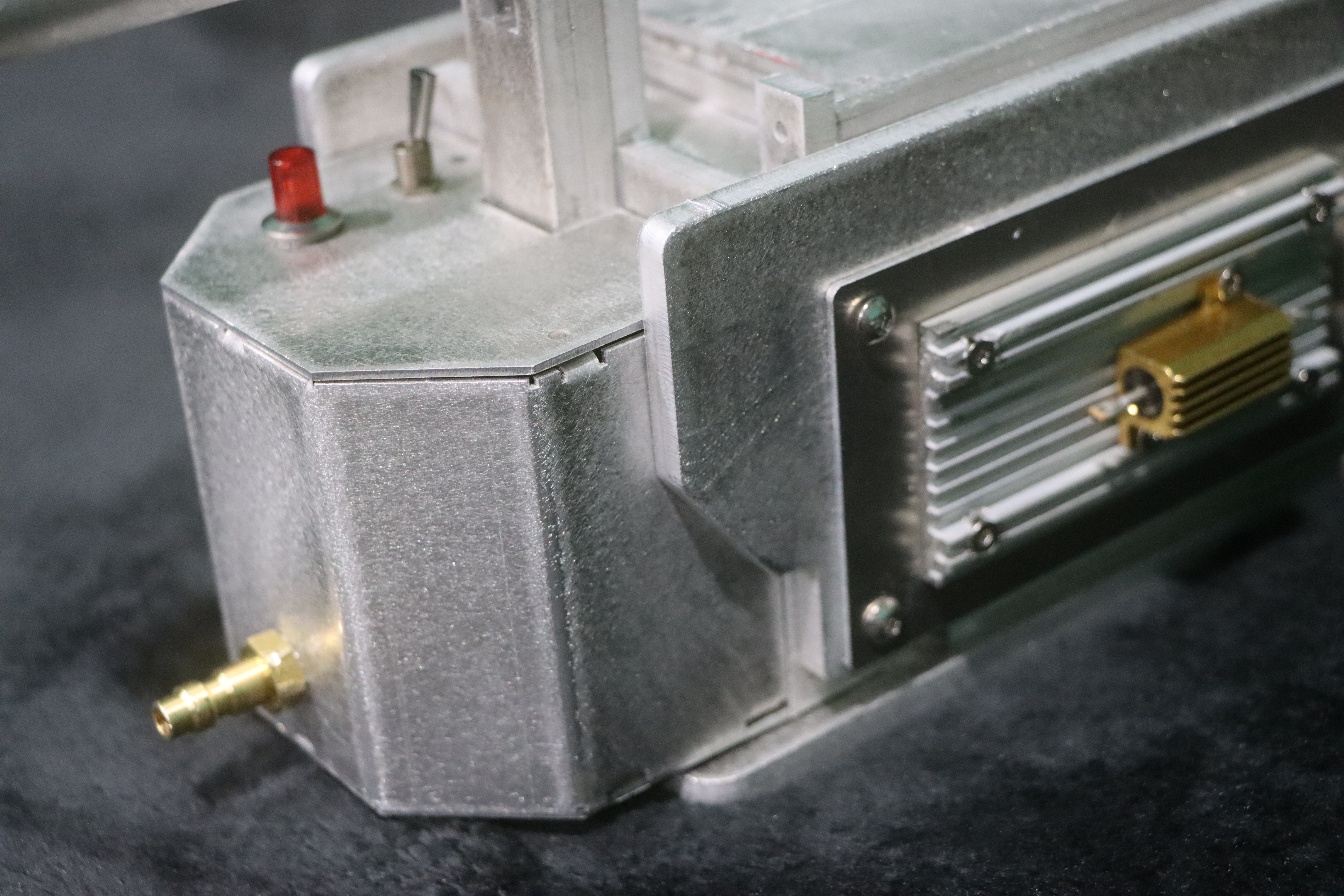

- IMG_1001.JPG (9.8 MiB) Viewed 5537 times

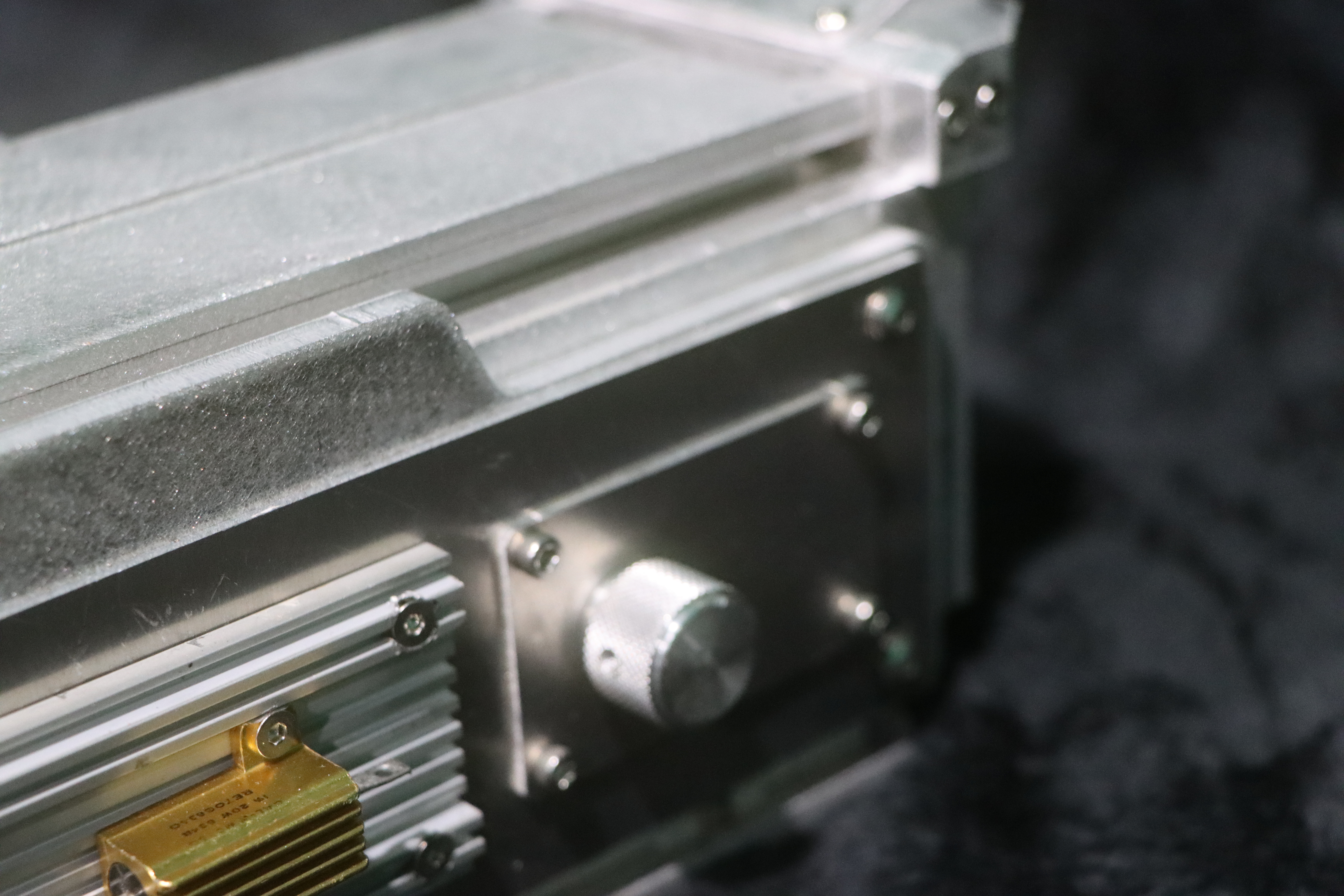

- IMG_1002.JPG (9.64 MiB) Viewed 5537 times
