Coupler locks for Scavenger Leg (Not needed with rev 2.0)

[Marc ph]

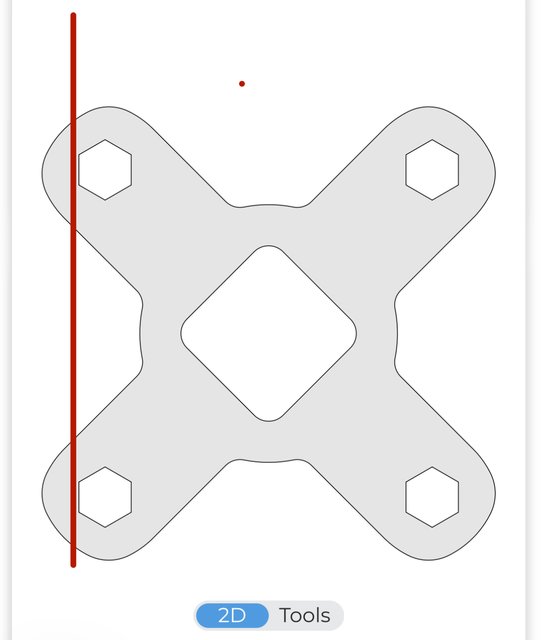

This is only needed if you have rev 1 legs and want to modify them to fit. you will need to cut them at the red line to slip them in place. you may have to make a slight modification to the inside leg support.

Difficulty Level: Beginner



Scavenger Workshop Astromech leg Coupler Lock.

File 1 of 1
5052 H32 Aluminum (.187")
2.771 x 2.771 in
3_16_scavlegs_lock.dxf

3_16_scavlegs_lock (1).dxf

(173.28 KiB) Downloaded 46 times
