Devin's Astromech Horseshoes

[Marc ph]

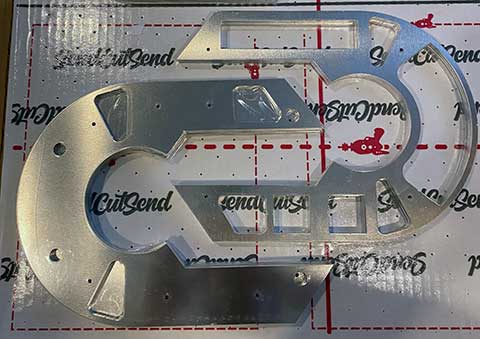

horseshoe and shim.jpg (29.63 KiB) Viewed 879 times

Here we are builders!
https://github.com/drolsen/r2d2-horseshoes-shims



Flat pack (open source) solid or hollow core horseshoes / shims for TexMex, COM8 and Solaris frame types starting at under $200 (at time of this post).

I recommend that if you are unsure about these fitting your legs, you can print off the provided PDF drawings (for your frame type) on 8x11 sheet of paper (at actual size) and test fit before purchasing anything:
https://github.com/drolsen/r2d2-horsesh ... ster/tests (test drawings)

CS:R TexMex/COM8 frames (SendCutSend)
Shims Only
Solid Core Horseshoes & Shims
Hollow Core Horseshoes & Shims

CS:R Solaris frames (SendCutSend)
Shims Only
Solid Core Horseshoes & Shims
Hollow Core Horseshoes & Shims

Horseshoe Assembly Guides
TexMex/COM8 Horseshoe Guide
Solaris frames Horseshoe Guide


Images
