Scavenger Hub Drive

[Marc ph]

Scavenger Hub Drive


Files can be found here for a small donation to charity. Subscription grants access to all files or you can choose one time purchase for $10
https://www.patreon.com/c/ScavengerWorkshop


File 1 of 1
5052 H32 Aluminum (.187")
Scavenger-Hub-Drive-187.dxf







Parts List

4 X 3/8 in.-16 TPI Zinc Rod Coupling Nuts (2-Pack)
6 X 3/8 in.-16 x 4 in. Zinc Plated Hex Bolt
1 X 3/8 in. Zinc Flat Washer (8-Pack)
2 X Vex 3.25 Omni wheel
2 X Hub Drive with .5 drive shaft

Scavenger-Hub-Drive-187.zip

(2.6 KiB) Downloaded 14 times

[teeces]

I'm very interested to see how this goes together!

[BradHerman]

If your using the Scavenger Hub drives you still need the center wheel hub from the 2.0 hub files for R2 to be drivable.
I have extracted those parts here if your doing an order to make it easier:

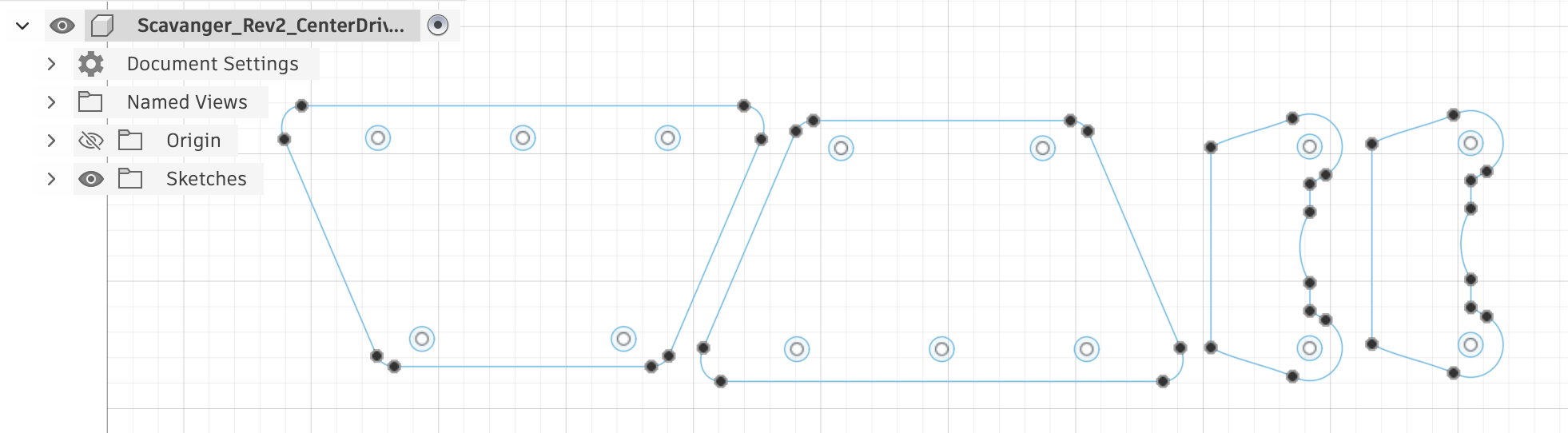

Scavanger_Rev2_CenterDriveWheelOnly_0125.dxf

(30.41 KiB) Not downloaded yet

Process: Sheet Cutting
Material: Aluminum 5052-H32
Material Thickness: 0.125in


Vex Robotics
2 qty 1.125" Bearing Pilot Plastic VersaHub (1/4" Wide, w/ Plate Sprocket Mount)
4 qty 4" Omni-Directional Wheel v2
4 qty 0.500" ID x 1.125" OD x 0.313" WD (Flanged Bearing) • $2.99 SKU#: 217-2731

(Updated guide on using the more easily available goBuild wheels is coming soon)

Home Depot
5 qty 3/8 in.
-16 x 4 in. Zinc Plated Hex Bolt
5 qty 3/8 in. nylon lock nuts

AluminumSpacer.com
4 qty Aluminum Spacer 1/2 OD x .382 ID x 3/4 Long
2 qty Aluminum Spacer 1/2 OD x .382 ID x 1-3/8 Long
2 qty Aluminum Spacer 1/2 OD x .382 ID x 1/8 Long
4 qty Aluminum Spacer 1/2 OD x .382 ID x 1-1/2 Long
