Aluminum top rack assembly

[KyleR]

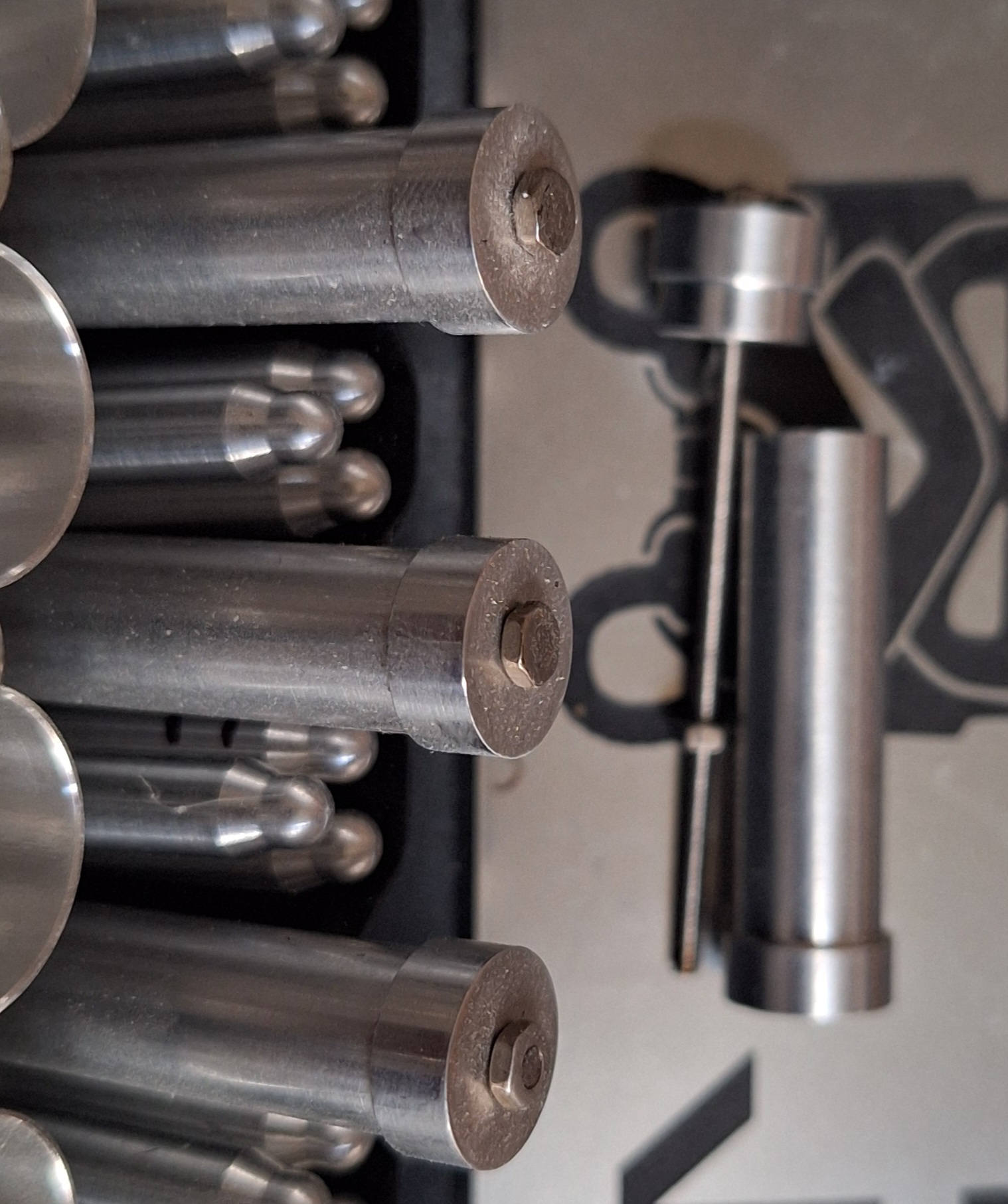

These are the mounting posts the brass pc is a threaded insert and takes a m2 x .4 screw to attach it to the base. It fits inside the aluminum pc.

[KyleR]

To make these i bent 7pcs of thin wire to shape and drilled 14 hole and just glued them in

[KyleR]

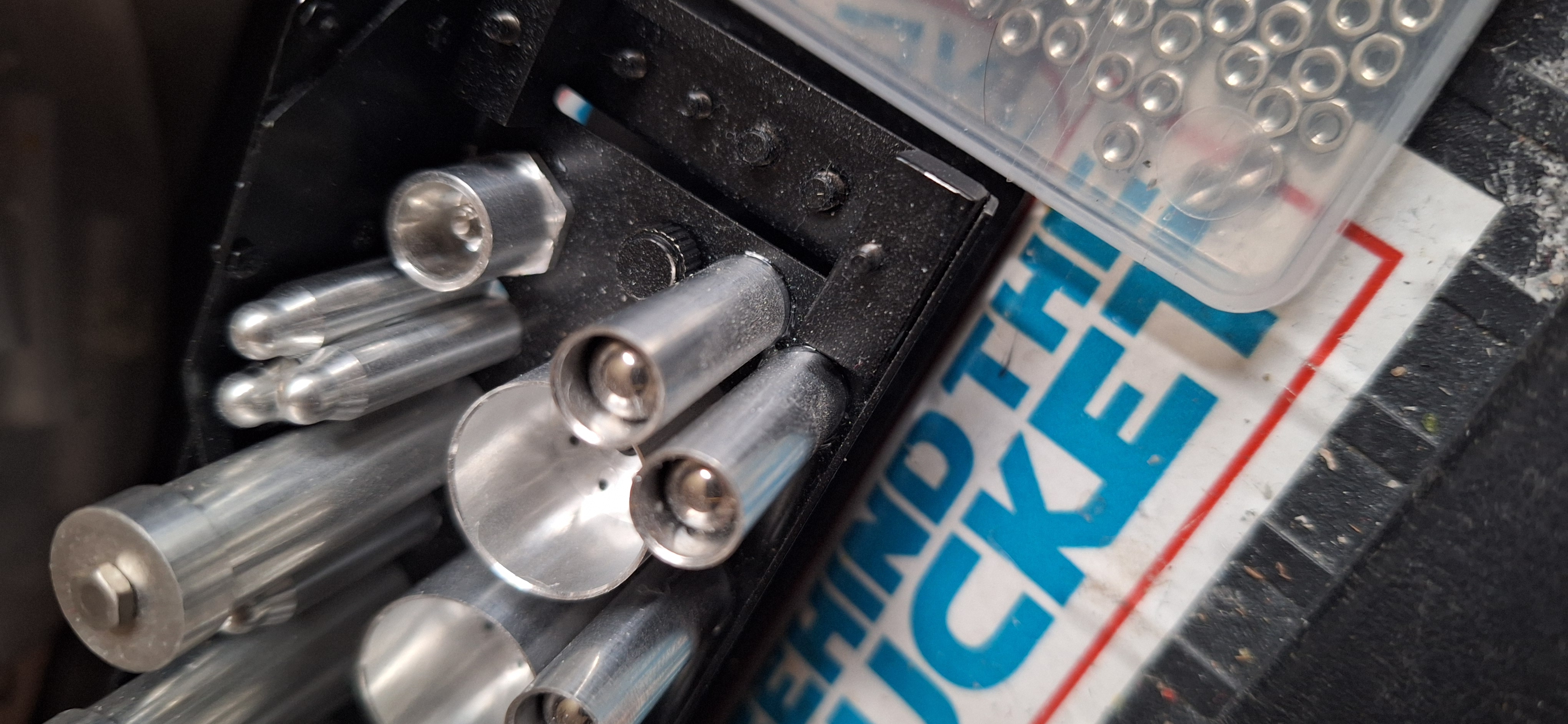

The tall post has a 1/4"ball bearing glued in with E6000
This part is held in with E6000 and I lightly mushroom the bottom edge

[KyleR]

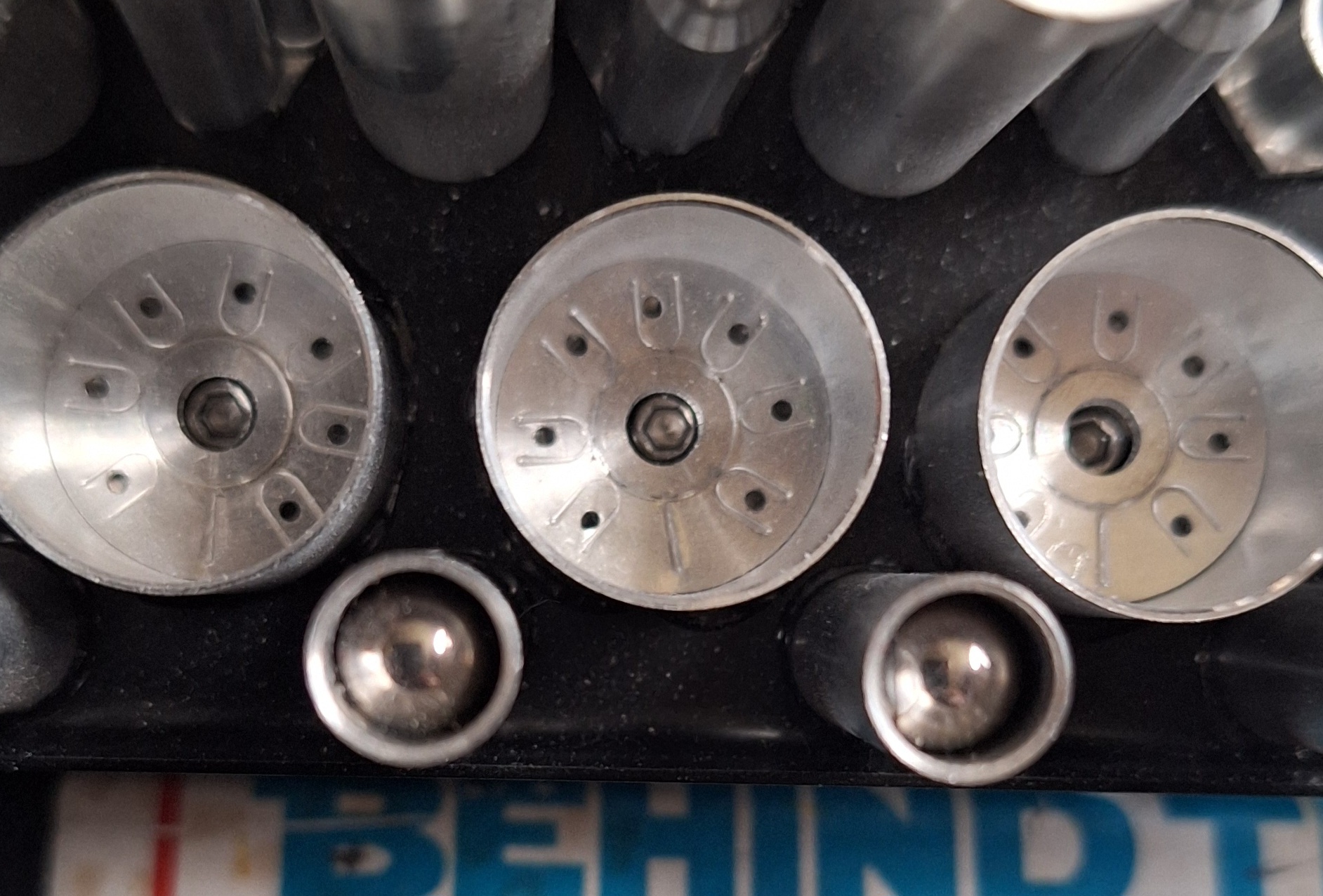

I drilled the 7 holes with a #60 drill, the shape around it is an 1/8" letter 'U' metal stamp the other is a #1 stamp

[KyleR]

The sets of 3 are just glued together with E6000 and glued to the back wall.

The hex part is screwed together with the bottom one.
The Allen wrench is a 2mm.

[KyleR]

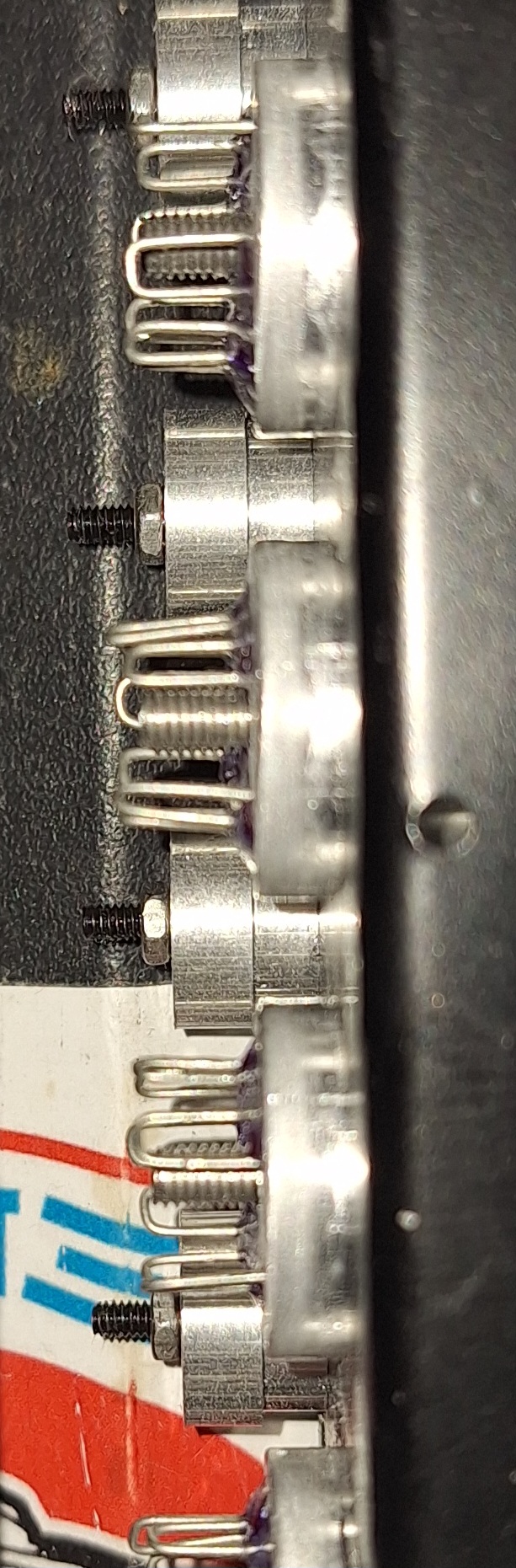

This is drilled thru both parts for the all thread and 2 nuts. I had to redrill the hole in the rack to 5/64".
