Scavenger MSE-Zilla

[Marc ph]

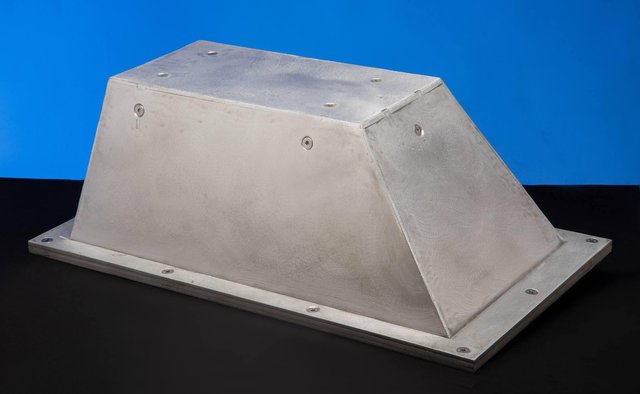

Scavenger MSE No Weld Shell

Difficulty Leve:l Moderate




DFX File


File 1 of 1
Process: Sheet Cutting
Material: Aluminum 5052-H32
Material Thickness: 0.188in
Finish: Standard, As Cut

Scavenger_MSE_ShellV1.dxf

(281.35 KiB) Downloaded 37 times

Parts List

[Marc ph]

Scavenger MSE Chassis

Assembly Guide

Scavenger MSE-6 Droid Build Guide Version 0_5 (1).pdf

(4.8 MiB) Downloaded 29 times

DFX File

File 1 of 1
Process: Sheet Cutting
Material: Aluminum 5052 H32
Material Thickness: 0.188in
Finish: Standard, As Cut

msescav_v2__1___2_.dxf

(230.02 KiB) Downloaded 34 times

Parts List



Vex Robotics
2 X  4" Traction Wheel • $15.99
6 X  4" Traction Tire (0.5" Wide, 2-pack) • $4.99
4 X  4" Omni-Directional Wheel v2
2 X  1.125" Bearing Pilot Plastic VersaHub (1/4" Wide, w/ Plate Sprocket Mount)
2 X  1.125” Bearing Bore Plastic VersaHub Spacer (1/2” Wide)
8 X  0.500" ID x 1.125" OD x 0.313" WD (Flanged Bearing) • $2.99
1 X  #25 Standard Roller Chain (10')
1 X  #25 Master Link (5 Pack)
2 X  34T Aluminum Plate Sprocket (#25 Chain, 1-1/8" Bearing Bore) • $11.99
Amazon
2 X AmpFlow P40-250 Brushed Electric Motor, 250W, 12V, 24V or 36 VDC, 3400 RPM, Black
AluminumSpacer.Com
8 X Aluminum Spacer 1/2 OD x .382 ID x 1-1/2 Long
4 X Aluminum Spacer 1/2 OD x .382 ID x 7/32 Long
2 X Aluminum Spacer 3/4 OD x .509 ID x 7/8 Long
4 X Aluminum Spacer 3/4 OD x .509 ID x 7/32 Long
Home Depot
1 XM6-1 x 20 mm. Internal Hex Socket Cap-Head Cap Screws (8-Pack)
2 X M6-1.0 Zinc Hex Nut 5-Pieces (D5-A)
2 X #8-32 x 1/2 in. Stainless Steel Combo Round Head Machine Screw (6-Pack)
1 X M6-1 x 12 mm. Internal Hex Socket Cap-Head Cap Screws (10-Pack)



Motor Controller and electronics can be personally Designed or you can use what I have chosen below.

[Marc ph]

Scavenger MSE No Weld Skirt

DFX File


File 1 of 1
Process: Sheet Cutting
Material: Aluminum 5052 H32
Material Thickness: 0.188in
Finish: Standard, As Cut

Scavenger_MSE_SkirtlV2.4__1_.dxf

(381.42 KiB) Downloaded 85 times
